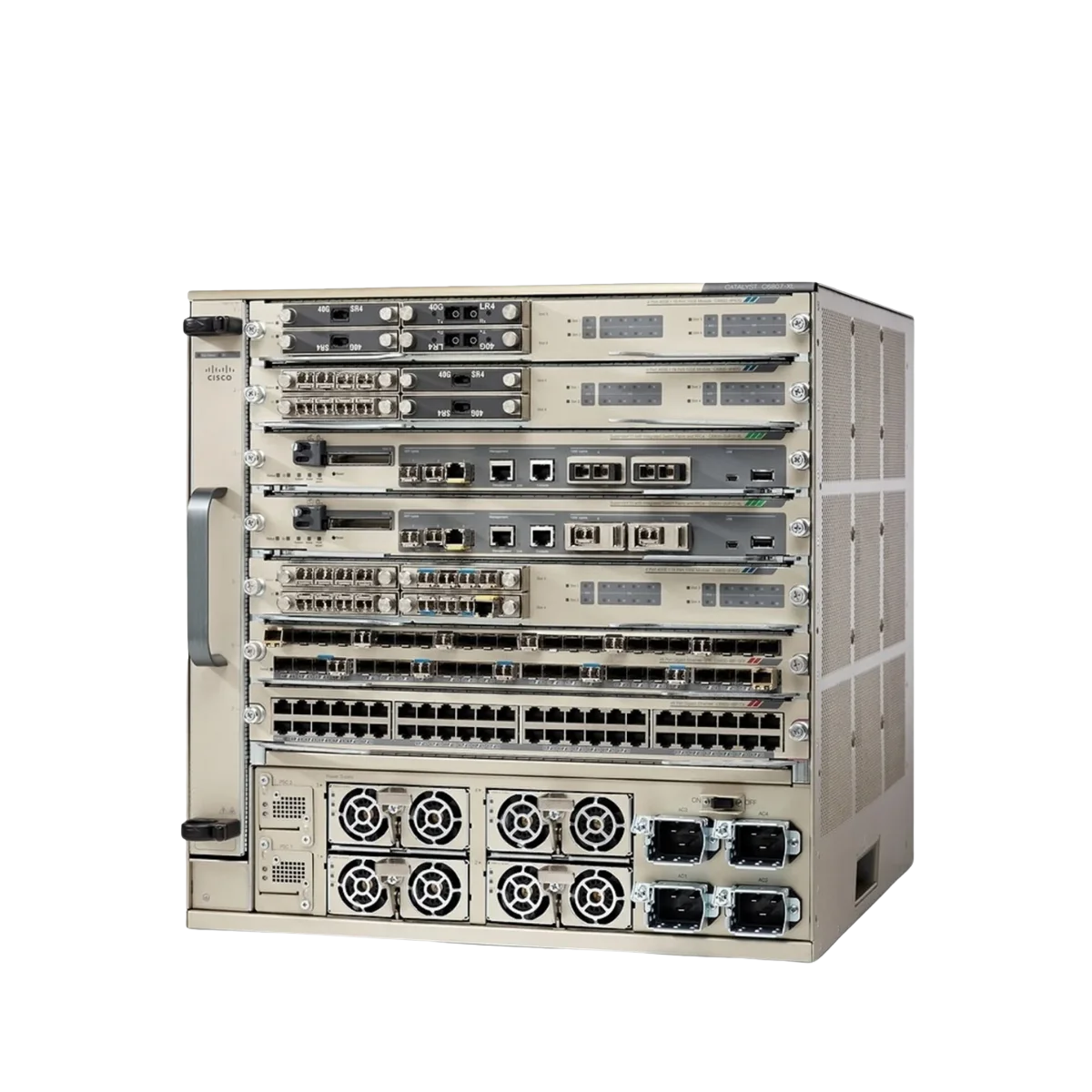

Cisco Catalyst 6807-XL Modular Switch
EGP256,900.00
- Number of Ports : Up to 448 ports (depending on configuration).
- Power Over Ethernet (PoE): Non PoE (PoE support depends on the line cards used).
- Layer : Layer 2 and Layer 3
- Managed: yes
- Condition : New
- Warranty: 6 months
3 in stock
The Cisco Catalyst 6800 Series is a versatile line of modular and fixed switches, specifically designed to address the demands of large enterprise networks. Moreover, this series delivers exceptional performance, seamless scalability, and advanced network management features. As a result, organizations benefit from a highly reliable and efficient networking solution that supports growing connectivity needs and evolving enterprise requirements.
For more details, you can find the datasheet on our website at the following link :
Cisco Catalyst 6800 Series Switches Datasheet
The Cisco Catalyst 6807-XL is a high-performance modular switch, specifically designed for enterprise core and aggregation environments. Notably, it provides exceptional scalability, supporting up to 11.4 terabits per second (Tbps) of system bandwidth and up to 880 gigabits per second (Gbps) of per-slot bandwidth. Furthermore, when deployed in a Virtual Switching System (VSS) configuration, it can achieve an impressive 22.8 Tbps of system bandwidth, ensuring seamless network expansion and superior data throughput.
Key Features:
- High Performance: Up to 11.4 Tbps of system bandwidth, with support for up to 8 units stacked for 22.8 Tbps total.
- Advanced Security: Includes Cisco TrustSec, MACsec encryption, 802.1X authentication, and integration with Cisco security solutions.
- Power Over Ethernet (PoE): Supports UPOE for powering devices like phones and cameras.
- Energy Efficiency: Energy Star and Cisco EnergyWise compliant for lower energy consumption.
- Redundancy: 1+1 supervisor engine, N+1 power supply, and redundant fans for high availability.
- Flexible Connectivity: Supports 10G, 40G, and 100G Ethernet interfaces, with fiber and copper media options.
- Layer 2 & Layer 3 Features: Advanced routing, VLANs, and dynamic routing protocols like OSPF and BGP.
- Advanced Management: Managed via Cisco DNA Center, REST APIs, CLI, and SNMP.
- Modular Design: 10RU chassis with scalable options for future growth.
| Brand | Cisco |
|---|---|
| Model | Catalyst 6807-XL |
| Product Type | Modular Switch |
| Series | Catalyst 6800 Series |
| Power Over Ethernet (PoE) | Not Supported (PoE support depends on the line cards used) |
| Ports | Depends on the line card (up to 440 10G ports in full configuration) |
| Fiber Uplink Ports | Supports 40G and 100G ports (depending on the line card used) |
| Layer Support | Supports Layer 2 (Switching) and Layer 3 (Routing) functionality |
| Dimensions (H x W x D) | • (44.3 x 44.1 x 46)cm |
| Weight | • Chassis Only: 62 lbs (approximately 28.1 kg). |
| Rack Units (RU) | 10 U |
| Default Power Supply | Supports up to 4 AC power supplies (3000W each) |
| Input voltage | 100 to 240 VAC |
| Operating temperature | 32°F to 104°F (0 to 40°C) |
| Console Cable | Console port and auxiliary port for management access. |
| Media Type Supported | Supports fiber optic and copper media types. |
| Processor &Memory | Supports Supervisor Engine 6T and Supervisor Engine 2T.(up to 16GB DRAM) |
| Fan | Supports hot-swappable fan tray. |
| Switching Capacity | Up to 11.4 Tbps (22.8 Tbps in VSS configuration) |
| Forwarding rate | Up to 842 million packets per second |
| MAC Address table size | Supports up to 32,000 MAC addresses. |
| Stacking | Supports Cisco StackWise-480 technology, allowing stacking of up to 8 units. |
