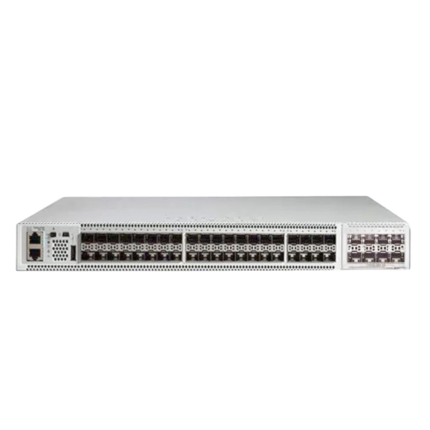

Overview of Cisco Catalyst C9500-40X-A

The Cisco Catalyst C9500‑40X‑A is a high-performance enterprise core and aggregation switch designed to support modern campus networks, cloud connectivity, and high-speed data center environments. Developed by Cisco Systems, this switch belongs to the Cisco Catalyst 9500 Series, which represents Cisco’s next-generation fixed core switching platform built for security, automation, and scalability.

The Cisco Catalyst C9500-40X-A provides 40 × 10-Gigabit SFP+ ports, delivering high-bandwidth connectivity for enterprise campus cores, data center aggregation layers, and high-capacity distribution networks. It runs Cisco IOS-XE software and supports advanced Layer 3 routing capabilities, making it ideal for large-scale enterprise networks that require reliable performance and advanced network services.

High-Performance 40×10G SFP+ Port Architecture

The Cisco Catalyst C9500-40X-A 40-Port SFP+ Switch is designed to provide ultra-high-speed connectivity across enterprise networks.

Key interface features include:

• 40 × 10-Gigabit Ethernet SFP+ ports

• High-speed optical connectivity

• Flexible support for various SFP+ transceivers

• Designed for aggregation and core switching

This port configuration allows the switch to handle high-bandwidth workloads such as cloud applications, virtualization traffic, and large-scale data transfers.

Enterprise-Class Switching Performance

The Cisco Catalyst C9500-40X-A delivers powerful switching performance to meet the demands of large enterprise networks.

Performance capabilities include:

• Switching capacity up to 960 Gbps

• Forwarding rate up to 720 Mpps

• MAC address table up to 64,000 entries

• Support for jumbo frames up to 9198 bytes

These capabilities ensure low latency and high throughput even in high-traffic environments such as enterprise campuses and data centers.

Advanced Layer 3 Routing and Network Services

The Cisco Catalyst C9500-40X-A Enterprise Switch supports advanced Layer 3 routing protocols that enable intelligent traffic management across large networks.

Supported routing protocols include:

• OSPF

• BGP

• EIGRP

• RIP

• IS-IS

• VRRP

• PIM multicast routing

These features allow the switch to function as a high-performance core router within enterprise network architectures.

Large Routing and VLAN Scalability

The switch is designed to support large network infrastructures with extensive routing and segmentation capabilities.

Scalability features include:

• Up to 4000 VLAN IDs

• Up to 4000 Switched Virtual Interfaces (SVIs)

• Up to 64,000 IPv4 routes

• Up to 32,000 IPv6 routes

This scalability allows enterprises to build complex multi-VLAN networks while maintaining high routing efficiency.

Enterprise Security and Network Visibility

Security is a core component of the Cisco Catalyst architecture. The Cisco Catalyst C9500-40X-A supports advanced security and visibility features that help protect enterprise networks.

Security capabilities include:

• Access Control Lists (ACLs) up to 18,000 entries

• Flexible NetFlow monitoring

• Advanced encryption technologies

• Secure network segmentation

These features provide enhanced visibility into network traffic and protect enterprise infrastructure from threats.

High Reliability and Redundant Power Design

The Cisco Catalyst C9500-40X-A is designed for mission-critical environments where uptime and reliability are essential.

Reliability features include:

• Redundant power supply support

• Hot-swappable power modules

• Enterprise cooling architecture

• High MTBF reliability design

The switch supports power supplies with a maximum rating of 950W, ensuring stable operation even under heavy workloads.

Optimized for Enterprise Campus Core Networks

The Cisco Catalyst C9500-40X-A 40-Port SFP+ Switch is commonly deployed in:

• Enterprise campus core networks

• Data center aggregation layers

• Cloud connectivity infrastructure

• Large enterprise distribution layers

Its high throughput and advanced routing capabilities allow organizations to build scalable and resilient network infrastructures.

Compact 1U Rackmount Design

Despite its powerful performance, the Cisco Catalyst C9500-40X-A maintains a compact design suitable for modern data centers.

Physical specifications include:

• Form Factor: 1U Rackmount

• Dimensions: 1.73 × 17.5 × 21.52 inches

• Operating Temperature: 0°C to 40°C

• Power Input: 115–230 VAC

This compact design allows efficient rack utilization in enterprise server rooms and data centers.

FAQ

What is Cisco Catalyst C9500-40X-A used for?

The Cisco Catalyst C9500-40X-A is typically deployed as a core or aggregation switch in enterprise campus networks. It provides high-speed connectivity and advanced routing capabilities for large organizations and data-intensive environments.

Does Cisco Catalyst C9500-40X-A support Layer 3 routing?

Yes. The switch supports advanced Layer 3 routing protocols such as OSPF, BGP, EIGRP, and static routing, allowing it to function as a powerful enterprise core routing platform.

How many ports does Cisco Catalyst C9500-40X-A have?

The switch provides 40 high-speed 10-Gigabit SFP+ ports, enabling high-bandwidth connectivity between network layers.

Is Cisco Catalyst C9500-40X-A suitable for data centers?

Yes. Thanks to its high switching capacity, low latency, and advanced routing features, the Cisco Catalyst C9500-40X-A is commonly used in enterprise data center aggregation and campus core networks.
