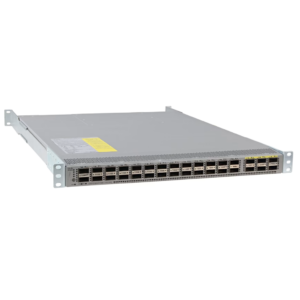

Cisco Nexus 9332PQ 32-Port 40G Data Center Switch

The Cisco Nexus 9332PQ is a high-performance 40 Gigabit Ethernet data center switch designed to deliver high-density connectivity, fast switching, and scalable network performance in modern data center environments. With 32 x 40Gb QSFP+ ports, up to 2.56 Tbps of internal bandwidth, and forwarding performance of more than 720 million packets per second, the Cisco Nexus 9332PQ provides a powerful platform for demanding enterprise, cloud, and service-provider network infrastructures.

The switch is part of the Cisco Nexus 9300 platform and uses a compact 1RU form factor, making it suitable for space-efficient data center deployments such as Top-of-Rack (ToR) and Middle-of-Row (MoR) architectures. Cisco designed the Nexus 9300 platform for data center environments that require high-speed Ethernet connectivity, scalability, and efficient network operations.

With its combination of 40 Gigabit QSFP+ connectivity, Layer 2 and Layer 3 capabilities, and support for advanced data center networking architectures, the Cisco Nexus 9332PQ N9K-C9332PQ is an effective choice for organizations looking to build or expand high-speed data center networks.

Cisco Nexus 9332PQ Key Features

The Cisco Nexus 9332PQ combines high port density with high-speed connectivity in a compact 1RU chassis. Its main features include:

• 32 x 40 Gigabit Ethernet QSFP+ ports
• Up to 2.56 Tbps of internal bandwidth
• More than 720 Mpps forwarding performance
• 1RU rack-mount form factor
• Layer 2 and Layer 3 switching capabilities
• Cisco NX-OS software support
• High-density QSFP+ connectivity
• Support for data center ToR and MoR deployments
• 25 MB of additional shared packet buffer
• 100/1000BASE-T management port
• RS-232 console port
• Two USB ports
• Redundant power supply capability
• Four replaceable fan modules

Cisco’s official documentation identifies the N9K-C9332PQ as a 1RU switch with 32 40-Gigabit QSFP+ ports, while the official data sheet specifies up to 2.56 Tbps of bandwidth and more than 720 Mpps across the 32 ports.

32 x 40Gb QSFP+ Ports for High-Speed Connectivity

One of the strongest features of the Cisco Nexus 9332PQ Switch is its 32 high-speed QSFP+ ports. Each port supports 40 Gigabit Ethernet connectivity, allowing the switch to provide high-density bandwidth within a single 1RU device. Cisco specifically lists the Nexus 9332PQ as a 32 x 40-Gbps QSFP+ switch within the Nexus 9300 platform.

The high port density makes the switch suitable for data centers where network traffic continues to increase and organizations require faster connections between servers, storage systems, aggregation layers, and other network devices.

For environments that need high-speed backbone or leaf connectivity without occupying multiple rack units, the Cisco Nexus 9332PQ 40G Switch provides a compact solution that combines multiple 40Gb interfaces in a single chassis.

The switch also supports advanced QSFP+ optics and cabling options, giving network administrators flexibility when designing high-speed Ethernet connections. Cisco documentation also describes breakout capabilities for supported ports, allowing certain 40Gb ports to be used with 4 x 10Gb breakout connectivity.

2.56 Tbps Switching Bandwidth

Network bandwidth is one of the most important factors when selecting a data center switch. The Cisco Nexus 9332PQ provides up to 2.56 Tbps of internal bandwidth, allowing it to handle high volumes of network traffic across its 40 Gigabit Ethernet interfaces.

This level of bandwidth is useful for environments where large amounts of data move between servers, applications, storage systems, and other infrastructure components.

The switch is designed as a nonblocking Layer 2 and Layer 3 platform, helping organizations build data center networks capable of supporting high-speed traffic without relying on lower-speed interfaces as the primary connectivity layer. Cisco identifies the Nexus 9300 platform as a family of Layer 2 and Layer 3 nonblocking Ethernet switches designed for enterprise, service-provider hosting, and cloud computing environments.

More Than 720 Mpps Forwarding Performance

In addition to high bandwidth, the Cisco Nexus 9332PQ delivers forwarding performance of more than 720 million packets per second (Mpps). This high forwarding capability is important in data center networks where large numbers of packets may need to be processed simultaneously.

High packet-processing performance can help support applications with demanding traffic patterns, including virtualization environments, cloud infrastructure, enterprise applications, and high-speed server-to-server communication.

Combined with 32 x 40Gb QSFP+ ports and 2.56 Tbps of bandwidth, the forwarding performance makes the N9K-C9332PQ a strong option for high-density data center switching requirements.

Compact 1RU Data Center Design

The Cisco Nexus 9332PQ uses a compact 1-rack-unit (1RU) chassis. Cisco specifies dimensions of approximately 17.3 inches wide, 22.5 inches deep, and 1.72 inches high, equivalent to approximately 43.9 x 57.1 x 4.4 cm. The chassis weight is approximately 22 lb (10 kg) before accounting for power supplies and fan modules.

The compact form factor helps organizations maximize rack space while deploying a large number of high-speed interfaces.

For data centers with limited rack space, a 1RU 40Gb switch can provide a practical way to increase network capacity without requiring a larger chassis.

Designed for Data Center Deployments

The Cisco Nexus 9300 platform was designed specifically for data center environments. Cisco identifies the platform for Top-of-Rack (ToR) and Middle-of-Row (MoR) deployments supporting enterprise applications, service-provider hosting, and cloud computing environments.

The Cisco Nexus 9332PQ can therefore be considered for several network architectures, including high-density leaf and spine designs, depending on the overall network topology and software configuration.

Its 40Gb QSFP+ interfaces can provide high-speed connectivity between network layers and infrastructure components, making it suitable for data center environments where bandwidth and port density are important requirements.

Cisco NX-OS for Data Center Networking

The Cisco Nexus 9332PQ supports Cisco NX-OS, Cisco’s operating system for Nexus data center switches. NX-OS provides a platform for managing and operating data center switching infrastructure while supporting the networking capabilities required by enterprise and data center environments.

Using a Cisco Nexus platform can also be beneficial for organizations already operating Cisco networking equipment because network teams may already have experience with Cisco interfaces, operational processes, and management practices.

The exact software features and capabilities available on a specific N9K-C9332PQ unit can depend on the software release, licensing, and operating mode. Cisco provides separate documentation for NX-OS mode and ACI mode, so the intended deployment should be verified against the applicable Cisco documentation before implementation.

Layer 2 and Layer 3 Networking

The Cisco Nexus 9332PQ is part of the Nexus 9300 platform of Layer 2 and Layer 3 nonblocking switches. This allows the platform to support data center network designs that require more than basic Ethernet switching.

Layer 2 switching can be used for Ethernet connectivity within network segments, while Layer 3 capabilities allow the switch to participate in routed network architectures.

This flexibility makes the Cisco Nexus 9332PQ Layer 3 Switch suitable for organizations designing scalable data center infrastructures where switching and routing capabilities need to operate within the same network platform.

25 MB Shared Packet Buffer

Another important hardware feature is the switch’s 25 MB of additional shared packet buffer space. Cisco states that this buffer is shared across all ports and is intended to provide more resilient operations.

Shared packet buffering can be valuable in data center environments where traffic patterns can change rapidly and where temporary congestion may occur between interfaces operating at high speeds.

For applications with significant traffic bursts, the additional buffer can contribute to more resilient traffic handling within the switching architecture.

Management and Console Connectivity

The N9K-C9332PQ includes dedicated interfaces for device management and configuration. Cisco’s hardware documentation specifies:

• 1 x 100/1000 network management port
• 1 x RS-232 console port
• 2 x USB ports

The management interface can be used for network management connectivity, while the console port provides access for initial configuration and device administration. The USB ports can be used for tasks such as saving or loading switch configurations according to Cisco’s hardware documentation.

These dedicated management interfaces make the switch easier to integrate into professional data center operations where administrators need separate access for configuration and management activities.

Redundant Power Supply Options

Reliability is a key consideration in data center networking. The Cisco Nexus 9332PQ chassis supports up to two power supplies, allowing a configuration that provides 1+1 power redundancy. Cisco documentation lists multiple power supply options, including 650W AC and 930W DC configurations, with the exact supported configuration depending on the hardware setup.

Cisco also specifies that AC and DC power supplies should not be mixed in the same chassis. The power supply and fan airflow direction should also be configured consistently according to Cisco installation requirements.

For businesses operating critical network infrastructure, redundant power can help improve availability by reducing dependence on a single power supply.

Four Replaceable Fan Modules

The Cisco Nexus 9332PQ chassis includes four fan modules. Cisco provides different airflow configurations, including port-side intake and port-side exhaust options.

Proper airflow selection is particularly important in data centers because rack layout, cold-aisle/hot-aisle configuration, and the airflow direction of adjacent equipment can affect cooling efficiency.

The fan modules are replaceable, which can simplify maintenance and help organizations maintain appropriate cooling performance during the equipment’s operational lifecycle.

Temperature and Environmental Specifications

Cisco specifies an operating ambient temperature range of 0°C to 40°C (32°F to 104°F) for the Nexus 9332PQ. The documented nonoperating temperature range is -40°C to 70°C, with operating altitude specified up to 4,000 meters. Cisco also specifies a relative humidity range of 5% to 95% noncondensing.

These environmental specifications should be considered when planning installation, particularly for data centers with elevated temperatures or non-standard rack environments.

Why Choose the Cisco Nexus 9332PQ?

Choosing the right data center switch depends on port requirements, network speed, scalability, rack space, and the overall architecture of the infrastructure. The Cisco Nexus 9332PQ offers a combination of high port density, 40Gb Ethernet connectivity, high switching bandwidth, and a compact 1RU design.

With 32 QSFP+ ports and up to 2.56 Tbps of internal bandwidth, the switch can serve environments that require significant network capacity in a compact chassis. Its Layer 2 and Layer 3 capabilities provide additional flexibility for data center network designs, while Cisco NX-OS provides the operating environment for managing the switch.

The N9K-C9332PQ is particularly relevant for organizations working with high-speed data center infrastructure, enterprise networks, cloud environments, and architectures where 40Gb connectivity is required.

Cisco Nexus 9332PQ for Data Centers

A high-performance data center switch needs to provide more than a large number of ports. It must also offer sufficient bandwidth, packet-processing capability, reliable hardware, appropriate management interfaces, and a form factor that fits the physical infrastructure.

The Cisco Nexus 9332PQ 40G Switch addresses these requirements through its 32-port QSFP+ configuration, 2.56 Tbps bandwidth, more than 720 Mpps forwarding performance, 1RU design, shared packet buffering, redundant power capabilities, and replaceable cooling components.

For organizations building high-density data center networks, the switch can provide a high-speed connectivity layer between network and infrastructure components while helping maximize rack-space utilization.

Cisco Nexus 9332PQ: A High-Density 40G Networking Solution

The Cisco Nexus 9332PQ N9K-C9332PQ combines 40 Gigabit Ethernet connectivity with a compact data center form factor and high switching performance. Its 32 QSFP+ ports, 2.56 Tbps internal bandwidth, and more than 720 Mpps forwarding capability make it a strong platform for high-speed networking requirements.

Whether deployed in a Top-of-Rack environment, a Middle-of-Row architecture, or as part of a scalable data center topology, the Cisco Nexus 9332PQ provides the high-density connectivity required by demanding network environments.

If you are looking for a Cisco Nexus 9332PQ 32-port 40G switch for a data center, enterprise infrastructure, cloud environment, or high-speed network deployment, the N9K-C9332PQ offers a combination of performance, density, management capabilities, and Cisco networking technology in a 1RU chassis.

For complete technical specifications and detailed product information, refer to the official Cisco Nexus 9300 Platform Switches Data Sheet.
