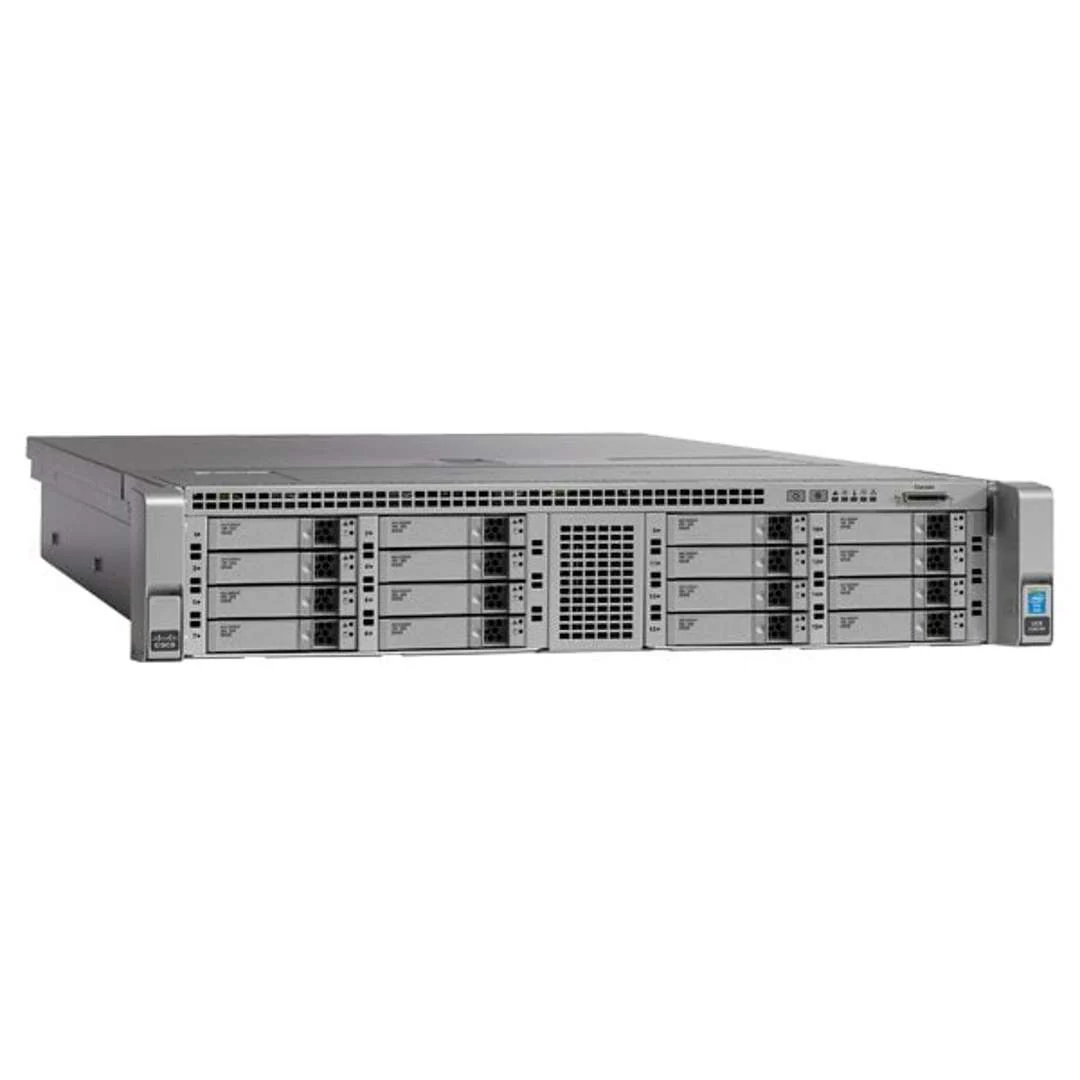

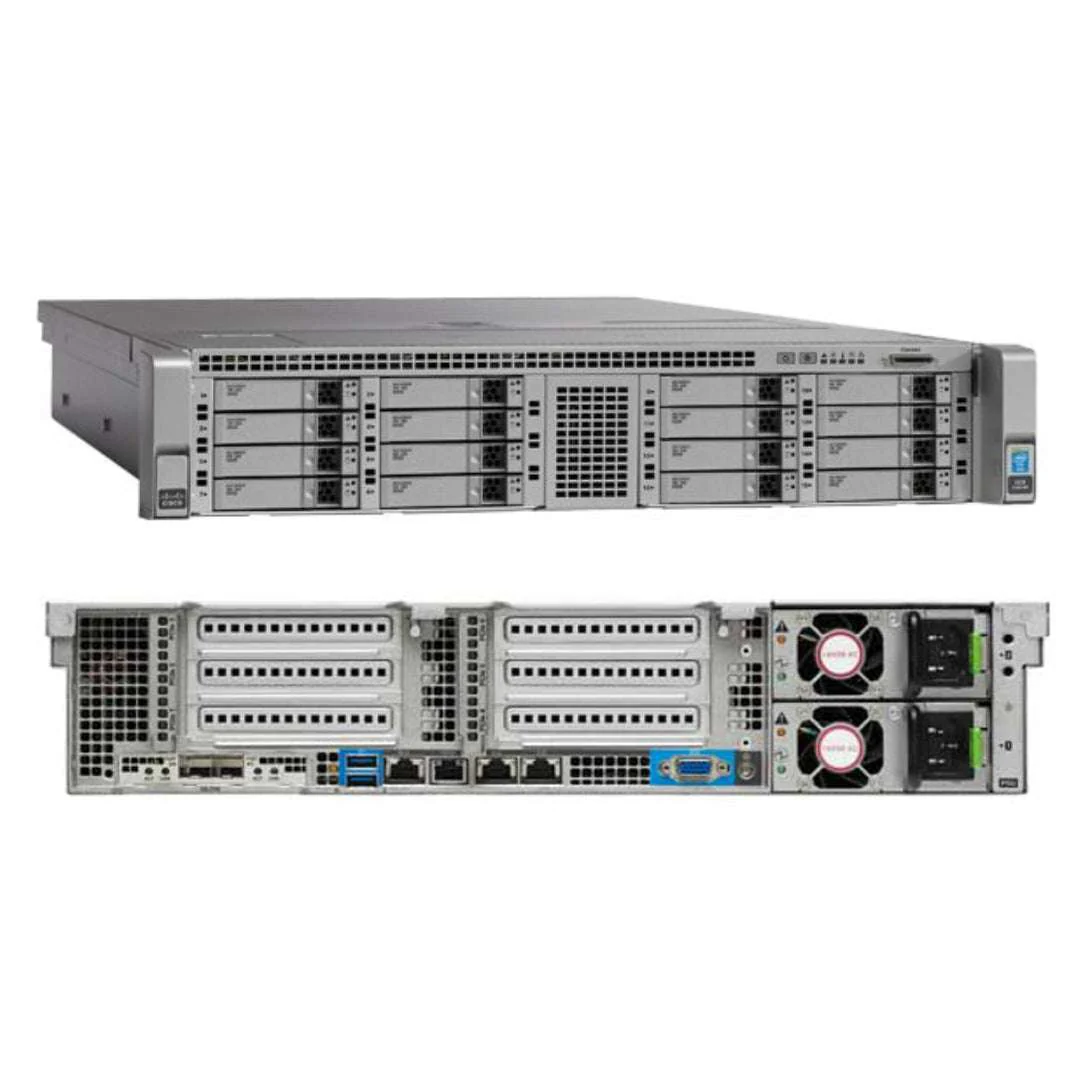

Cisco UCS C240 M4 Rack Server 16×2.5″

Cisco UCS C240 M4 Rack Server 16×2.5″ – High-Performance Rack Server for Demanding Workloads

The Cisco UCS C240 M4 Rack Server 16×2.5″ is a robust, 2U, 2-socket enterprise-class server designed to deliver exceptional performance for storage-intensive and compute-heavy applications. It supports up to 16 front-loading 2.5-inch drives, making it an ideal choice for data centers focusing on virtualization, big data analytics, collaboration, and enterprise resource planning (ERP) applications.

Powered by the Intel Xeon E5-2600 v3 and v4 processor families, the UCS C240 M4 provides excellent computing power, enhanced memory capacity, and flexible I/O options. With up to 24 DIMM slots supporting DDR4 memory and up to 6 PCIe 3.0 slots, it offers the scalability needed for growing business workloads.

Built with reliability and adaptability in mind, this server ensures high uptime and performance for mission-critical environments.

Key Features of Cisco UCS C240 M4 Rack Server 16×2.5″

Virtualization Optimization

The Cisco UCS C240 M4 Rack Server 16×2.5″ is optimized for virtualization environments through technologies such as:

• Cisco VM-FEX (Virtual Machine Fabric Extender) and Adapter FEX

• Support for I/O virtualization, reducing latency and improving throughput

• Compatibility with Intel Xeon E5-2600 v4/v3 features for improved performance

• Capability to extend security and network policies directly to virtual machines, enhancing data integrity and compliance

These features help reduce infrastructure complexity while increasing overall security and operational efficiency in virtualized environments.

Unified Management and Scalability

When deployed as part of Cisco’s Unified Computing System (UCS), the Cisco UCS C240 M4 Rack Server 16×2.5″ enables simplified and scalable management:

• Operates standalone or within a UCS-managed environment

• Seamless integration with Cisco UCS Manager for centralized management of computing, storage, and network resources

• Use of service profiles and templates allows for policy-based provisioning

• Increases agility by provisioning applications in minutes instead of days

• Enables easy migration of service profiles across hardware—rack to blade or blade to rack

This approach not only boosts IT agility but also maximizes administrator productivity and infrastructure ROI.

Enhanced Security and Data Protection

Security is a core component of the Cisco UCS C240 M4 Rack Server 16×2.5″. Key security features include:

• Trusted Platform Module (TPM) support, with both TPM 1.2 and TPM 2.0 options

• TPM secures authentication credentials such as passwords, certificates, and encryption keys

• Optional locking front bezel provides physical security to prevent unauthorized access to drive bays

• Ensures the integrity and confidentiality of sensitive enterprise data

Together, these features make the server a strong fit for industries with stringent security and compliance requirements.

Storage and Network Capabilities

The Cisco UCS C240 M4 Rack Server 16×2.5″ supports:

• Up to 16 front-accessible 2.5-inch drives, with optional upgrades for 24 total drives

• Dual internal SATA boot drives

• A modular mLOM slot to support flexible network interface options

• 2 x 1 GbE embedded LAN-on-motherboard (LOM) ports for standard network connectivity

This configuration allows businesses to scale storage and networking to meet evolving workload demands without costly infrastructure changes. The design supports both bandwidth-intensive workloads and high-availability applications, providing a solid foundation for enterprise IT needs.

Why Choose Cisco UCS C240 M4 Rack Server 16×2.5″?

Choosing the Cisco UCS C240 M4 Rack Server 16×2.5″ means investing in a server that combines high performance, scalability, and enterprise-grade reliability. Whether you’re running virtual machines, managing a private cloud, or analyzing large datasets, this server is built to support your workload today and scale for the future.

It also provides integration with the broader Cisco UCS ecosystem, which allows for unified management and rapid deployment across multiple environments.

Conclusion

The Cisco UCS C240 M4 Rack Server 16×2.5″ offers a powerful, scalable, and secure foundation for modern data center environments. With its support for high-performance processors, extensive memory and storage capacity, virtualization enhancements, and unified management through Cisco UCS, it stands out as an enterprise-grade solution for businesses that require flexibility and performance. Whether deployed as a standalone server or within a UCS fabric, it delivers reliability and efficiency at every level.

For more details, you can view the data sheet on our website using the following link: Spec sheet , Technical Guide
