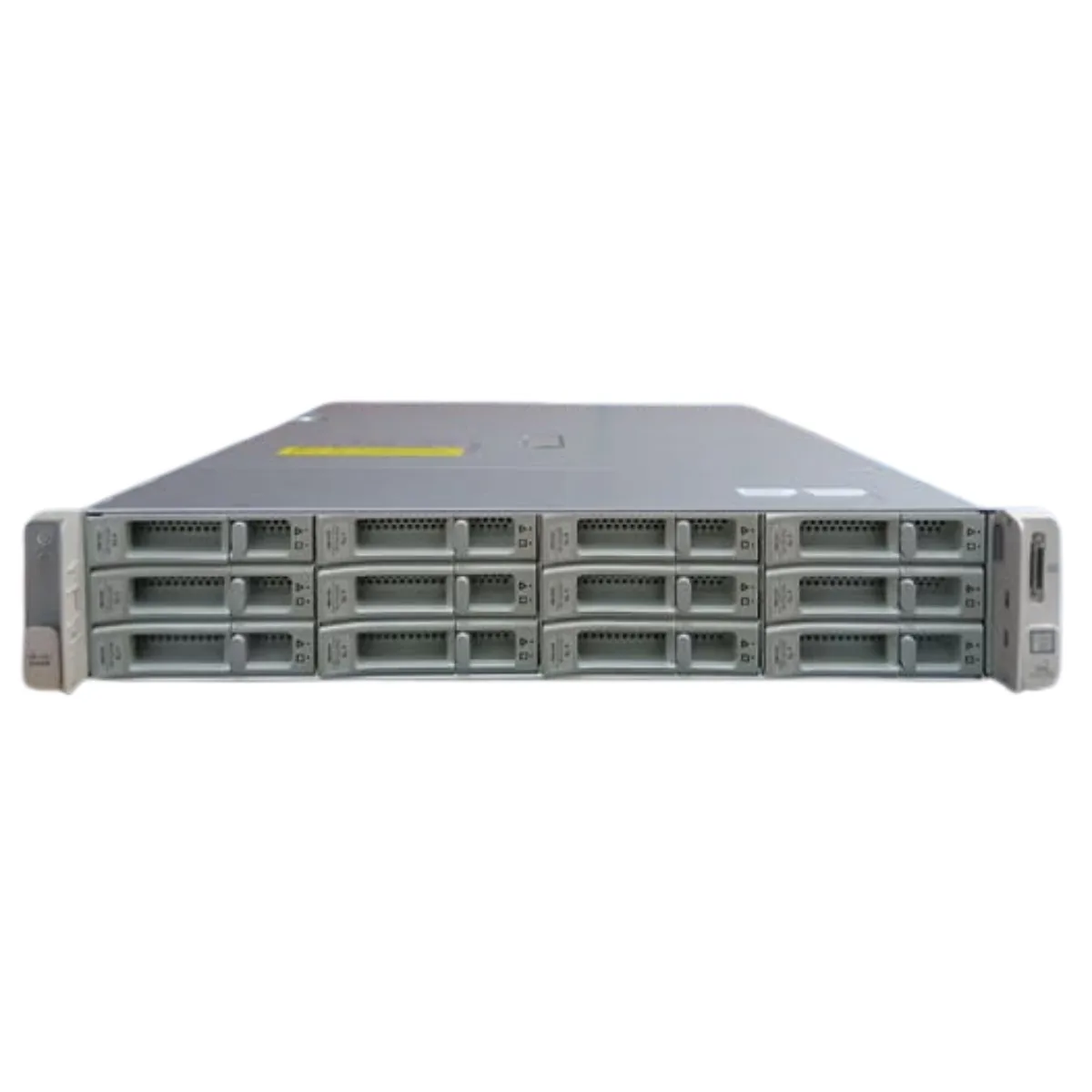

Cisco UCS C240 M5 12×3.5″
- 𝐂𝐏𝐔: Dual (2) Intel
Xeon Gold 6142 @ 2.60 GHz - [ Total: 32- Core, 44MB Cache , 64- Threads ]
- 𝐑𝐀𝐌: 32GB DDR4 (4x 8GB DDR4) – 2666MHz
- 𝐒𝐭𝐨𝐫𝐚𝐠𝐞: 12x 3TB SAS 3.5″ + 2x M.2 240GB SSD
- 𝐑𝐚𝐢𝐝 𝐂𝐨𝐧𝐭𝐫𝐨𝐥𝐥𝐞𝐫: UCSC-SAS-M5 Cisco Modular 12Gbps 16-Port SAS Host Bus Adapter
- 𝐋𝐀𝐍 𝐂𝐚𝐫𝐝: Cisco UCSC-MLOM-C25Q- (4x 25GB) Quad-Port SFP28 PCI-E Network Interface Adapter +2port x 1GBE
- 𝐏𝐨𝐰𝐞𝐫 𝐬𝐮𝐩𝐩𝐥𝐲: 2x Hot-pluggable, redundant 1050W AC
15
People watching this product now!
20
Items sold in last 3 months
Condition : Used
| Form factor | 2U |
|---|---|
| Processor | One or two 2nd Generation Intel® Xeon® scalable family CPUs |
| Ram type | DDR4 |
| Total Memory slots | 24 DIMM slots |
| Max memory | Up to 9 TB DDR4 3200 MHz |
| Support Raid controller | ■ Embedded RAID (software RAID) • Supports up to 8 SATA-only drives • Requires a SATA interposer board ■ Cisco 12G SAS RAID controller card with internal SAS connectivity. • Supports up to 26 internal SAS/SATA drives • Plugs into a dedicated RAID controller slot • Supports RAID 0, 1, 5, 6, 10, 50, 60 or JBOD mode ■ Cisco 12G SAS HBA (JBOD/Pass-through Mode) • Supports up to 26 SAS/SATA internal drives • Plugs into the dedicated RAID controller slot ■ Cisco 12G 9400-8e SAS HBA • Supports external JBOD attach • Plugs into an appropriate riser slot (up to two are supported) • No RAID support |
| Network controller | Dual 10GBASE-T Intel x550 Ethernet ports |
| Power supply | Up to two of the following hot-swappable power supplies: 770 W , 1050 W, 1600 W (AC) 1050 W (DC) One power supply is mandatory; one more can be added for 1 + 1 redundancy |
| Remote management | BMC, running Cisco Integrated Management Controller (Cisco IMC) firmware. Depending on your Cisco IMC settings, Cisco IMC can be accessed through the 1-Gb dedicated management port, the 1-Gb/10-Gb Ethernet LAN ports, or a Cisco virtual interface card |
| Operating system | Windows Server Red Hat VMware vSphere SUSE |
| Dimensions | Height : 3.43 in (87.1 mm) Width (including slam latches) : 17.57 in.(446.3 mm), (Including handles) : 18.96 in (481.5 mm) Depth : 29.56 in. (750.8 mm) , (Including handles) : 30.44 in (773.1 mm) |
| Weight | Max (24 HDD model with 26 HDDs, 2 CPUs, 24 DIMMs, 2 1600 W power supplies) : 59.5 lbs (26.1 kg) (8 HDD model with 8 HDDs, 2 CPUs, 24 DIMMs, 2 1600 W power supplies) : 45.5 lbs (20.6 kg) Min (24 HDD model with 1 HDD, 1 CPU, 1 DIMM, 1 770 W power supply) : 41.5 lbs (18.8 kg) (8 HDD model with 1 HDD, 1 CPU, 1 DIMM, 1 770 W power supply) : 37 lbs (16.8 kg) Bare (24 HDD model with 0 HDD, 0 CPU, 0 DIMM, 1 770 W power supply) : 40 lbs (18.1 kg) (8 HDD model with 0 HDD, 0 CPU, 0 DIMM, 1 770 W power supply) : 35.5 lbs (16.1 kg) |
