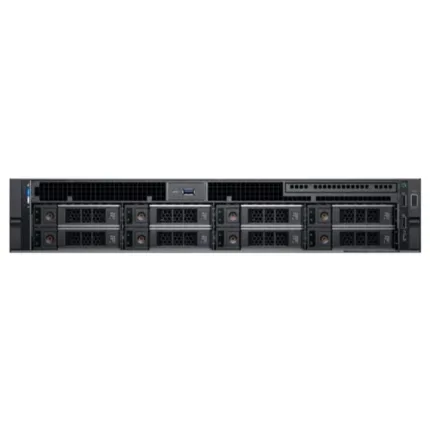

Dell EMC PowerEdge R740 8×3.5″

Dell EMC PowerEdge R740 8×3.5″ – High-Capacity, Scalable 2U Server for Enterprise Workloads

The Dell EMC PowerEdge R740 8×3.5″ is a powerful and highly flexible 2U rack server designed for data-intensive enterprise environments that require a balanced mix of storage capacity and compute performance. Featuring support for 8 hot-swappable 3.5-inch drives and dual Intel Xeon Scalable processors, this server delivers enterprise-grade reliability and scalability for modern workloads.

Whether you’re running virtualization, software-defined storage (SDS), backup and recovery, file services, or data-heavy applications, the R740 8×3.5″ provides the flexibility and performance needed to support growing IT demands in mid to large data centers.

Designed to support up to 3TB of DDR4 RAM and a wide range of storage and expansion options depending on configuration, this system offers excellent throughput and adaptability for evolving enterprise infrastructures.

Flexible Storage and Compute Power with Dell EMC PowerEdge R740 8×3.5″

The Dell EMC PowerEdge R740 8×3.5″ delivers a strong combination of storage efficiency and processing power in a compact 2U form factor. With 8 large-format 3.5-inch front-access bays, organizations can deploy high-capacity HDDs or SSDs to build cost-effective storage pools or performance-driven hybrid solutions.

Powered by dual Intel Xeon Scalable processors (up to 28 cores per CPU) and supporting up to 3TB of DDR4 memory across 24 DIMM slots, the R740 8×3.5″ is well-suited for demanding workloads such as virtualization, VDI, databases, and analytics. Multiple PCIe Gen3 slots allow expansion with RAID controllers, high-speed NICs, or GPUs to customize the server for specific use cases.

Enterprise-Class Management with Dell OpenManage

Efficient and secure management is a cornerstone of the PowerEdge platform. The PowerEdge R740 8×3.5″ includes iDRAC9 with Lifecycle Controller, enabling comprehensive out-of-band management without relying on an installed operating system.

Using OpenManage Enterprise and OpenManage Mobile, IT teams can automate deployments, monitor system health, apply firmware updates, and manage multiple servers from a centralized interface. Support for RESTful APIs and Redfish allows seamless integration with tools such as Ansible, VMware vCenter, and Microsoft System Center, simplifying large-scale infrastructure management.

Robust Security and Data Protection Features

The Dell EMC PowerEdge R740 8×3.5″ is built on a cyber-resilient architecture designed to protect systems, data, and firmware throughout the server lifecycle. Integrated security features include:

Secure Boot to ensure only trusted firmware is loaded
Cryptographically Signed Firmware to prevent unauthorized changes
System Lockdown Mode to block configuration modifications
TPM 1.2/2.0 for hardware-based encryption and identity verification
System Erase for secure data removal at end-of-life
Supply Chain Assurance to guarantee hardware integrity from factory to deployment

These features help organizations meet regulatory and compliance requirements such as HIPAA, GDPR, and PCI DSS, while reducing overall security risk.

Energy-Efficient Design and Uptime Optimization

The PowerEdge R740 8×3.5″ is engineered for efficiency and continuous operation in enterprise environments. It supports hot-plug, redundant 80 PLUS Platinum and Titanium power supplies, ensuring maximum uptime and reduced power consumption.

Advanced thermal management intelligently adjusts airflow and fan speeds based on real-time workload demands, improving energy efficiency without compromising performance. With Fresh Air 2.0 compliance, the server can operate reliably at ambient temperatures of up to 35°C, helping reduce cooling costs in the data center.

Accelerated Deployment and SDS Readiness

For faster time-to-value, the Dell EMC PowerEdge R740 8×3.5″ can be deployed as a validated Ready Node for leading software-defined storage platforms such as VMware vSAN, Microsoft Storage Spaces Direct, and Dell VxFlex.

These pre-tested configurations simplify deployment, minimize integration risks, and allow organizations to scale storage and compute resources efficiently as business needs evolve.

Why Choose the Dell EMC PowerEdge R740 8×3.5″?

Dual Intel Xeon Scalable processors (up to 28 cores each)
Up to 3TB DDR4 memory across 24 DIMM slots
8x 3.5″ front hot-swappable drive bays for high-capacity storage
Support for SATA, SAS, SSD, and hybrid storage configurations
Multiple PCIe Gen3 slots for RAID controllers, GPUs, and high-speed networking
iDRAC9 with Lifecycle Controller for secure remote management
Built-in security features including TPM, Secure Boot, and Signed Firmware
Energy-efficient power supplies with intelligent thermal control
SDS-ready for VMware vSAN, VxFlex, and other platforms

Ideal for virtualization, backup, file storage, databases, and data analytics workloads.

For more details, you can view the data sheet on our website using the following links: Spec sheet , Technical Guide
