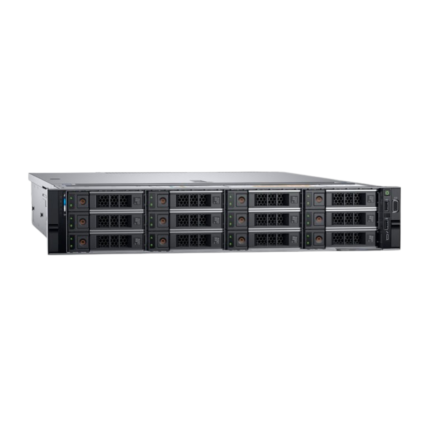

Dell EMC PowerEdge R7415 12×3.5″ Server

The Dell EMC PowerEdge R7415 12×3.5″ is an enterprise-grade 2U rack server designed to deliver cost-efficient scalability, reliable performance, and flexible storage capacity. Powered by an AMD EPYC™ processor in a single-socket architecture, this server provides an efficient platform for software-defined storage, business analytics, and demanding enterprise workloads.

Designed for organizations that need substantial storage capacity without the complexity of a multi-socket platform, the Dell EMC PowerEdge R7415 12×3.5″ combines flexible memory options, advanced management capabilities, and enterprise-grade security features. Its 12-bay 3.5-inch configuration makes it suitable for businesses requiring high-capacity storage for data-intensive applications.

Powerful Single-Socket Architecture

At the heart of the Dell EMC PowerEdge R7415 12×3.5″ is an AMD EPYC™ processor supporting up to 32 cores, depending on the selected CPU model.

The single-socket architecture provides an efficient balance between processing performance and infrastructure costs. It enables organizations to handle demanding workloads while simplifying system design and reducing the need for additional processor resources.

The Dell EMC PowerEdge R7415 12×3.5″ is well suited for software-defined storage, virtualization, business analytics, and enterprise applications that benefit from high core counts and efficient resource utilization.

Flexible DDR4 Memory Capacity

The Dell EMC PowerEdge R7415 12×3.5″ features 16 DDR4 DIMM slots supporting Registered DIMMs (RDIMMs) and Load-Reduced DIMMs (LRDIMMs).

The platform supports memory configurations of up to 2TB, depending on the supported processor and memory module configuration.

Key memory capabilities include:

• 16 DDR4 DIMM slots
• RDIMM and LRDIMM support
• High-capacity memory configurations
• Memory scalability for data-intensive workloads

This memory flexibility allows the Dell EMC PowerEdge R7415 12×3.5″ to support virtualization, in-memory analytics, and applications that require substantial memory resources.

High-Capacity 12-Bay Storage

Storage flexibility is a major advantage of the Dell EMC PowerEdge R7415 12×3.5″. Its front drive configuration supports up to 12 × 3.5-inch SAS/SATA hard drives, making it suitable for applications that require substantial storage capacity.

Supported drive technologies include:

• SAS hard disk drives
• SATA hard disk drives
• Enterprise storage configurations

For additional flexibility, the PowerEdge R7415 platform also supports alternative front configurations with up to 24 × 2.5-inch SATA/SAS/NVMe drives, depending on the chassis configuration.

The Dell EMC PowerEdge R7415 12×3.5″ is particularly suitable for organizations looking to balance storage capacity, performance, and infrastructure costs.

Advanced RAID and Storage Controllers

The Dell EMC PowerEdge R7415 12×3.5″ supports multiple storage controller options to accommodate different enterprise storage requirements.

Supported internal controllers include:

• Dell PERC H330
• Dell PERC H730P
• Dell PERC H740P
• Dell HBA330

The server also supports the external PERC H840 controller and the Boot Optimized Storage Subsystem (BOSS), depending on the selected configuration.

These options provide flexibility for storage management, RAID configurations, and operating system boot storage, helping organizations configure the Dell EMC PowerEdge R7415 12×3.5″ according to their application and data protection requirements.

Flexible Networking and PCIe Expansion

The Dell EMC PowerEdge R7415 12×3.5″ provides flexible networking and expansion capabilities to support modern enterprise infrastructure.

Available network daughter card options include:

• Dual 1GbE ports
• Dual 10GbE ports
• Dual 10GbE SFP+ ports

The server also supports up to four PCIe Gen3 expansion slots, comprising three x16-lane slots and one x8-lane slot.

These expansion options allow businesses to integrate compatible network adapters, storage controllers, and other PCIe devices to meet changing workload requirements.

Intelligent Systems Management

The Dell EMC PowerEdge R7415 12×3.5″ integrates Dell’s management technologies to simplify server administration, monitoring, and maintenance.

Key management features include:

• iDRAC9 with Lifecycle Controller
• iDRAC Direct
• iDRAC REST API with Redfish support
• Quick Sync 2 wireless management
• OpenManage Enterprise
• OpenManage Mobile

These capabilities help IT administrators automate routine tasks, monitor system health, manage firmware updates, and streamline server lifecycle operations.

With centralized management tools, the Dell EMC PowerEdge R7415 12×3.5″ can be integrated into enterprise environments that require efficient infrastructure administration.

Enterprise-Grade Security

Security is an essential part of the Dell EMC PowerEdge R7415 12×3.5″ platform. Its security features help protect system integrity and reduce the risk of unauthorized changes.

Supported security capabilities include:

• TPM 1.2/2.0 support, optional
• Cryptographically signed firmware
• Silicon Root of Trust
• Secure Boot
• System Lockdown
• System Erase

These technologies help organizations establish a more secure server environment, protect firmware integrity, restrict unauthorized configuration changes, and securely erase data when required.

Reliable Power and Cooling

The Dell EMC PowerEdge R7415 12×3.5″ supports multiple power supply options to accommodate different hardware configurations and operational requirements.

Available PSU options include:

• 495W Platinum
• 750W Platinum
• 750W Titanium
• 1100W and 1600W options, depending on the supported power configuration

Hot-plug power supplies with full redundancy options help improve availability and simplify maintenance.

The redundant power configuration allows organizations to build a more resilient infrastructure for business-critical applications, subject to the selected hardware and power supply setup.

Ideal Use Cases

The Dell EMC PowerEdge R7415 12×3.5″ is suitable for a variety of enterprise workloads, including:

• Software-defined storage
• Business analytics
• Virtualization and server consolidation
• Enterprise file storage
• Data-intensive applications
• High-capacity storage environments
• Small and medium-sized business infrastructure

Its combination of a high-core-count AMD EPYC processor, scalable DDR4 memory, and 12-bay 3.5-inch storage makes it a practical choice for organizations seeking an efficient enterprise server platform.

Conclusion

The Dell EMC PowerEdge R7415 12×3.5″ combines cost-efficient processing, flexible memory capacity, and high-density storage in a 2U rack server. With support for an AMD EPYC processor with up to 32 cores, up to 2TB of memory, 12 × 3.5-inch SAS/SATA drives, multiple RAID controllers, and advanced iDRAC9 management, it offers a versatile foundation for demanding business workloads.

For organizations seeking a scalable server for software-defined storage, virtualization, analytics, or enterprise data management, the Dell EMC PowerEdge R7415 12×3.5″ delivers a flexible platform designed to support evolving IT requirements.
