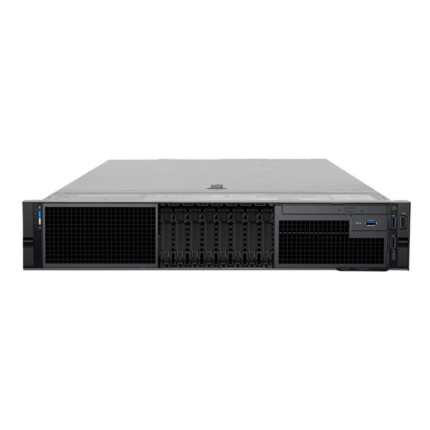

Dell EMC PowerEdge R840 8×2.5″ Server

The Dell EMC PowerEdge R840 8×2.5″ server is a high-performance four-socket platform engineered for mission-critical workloads that demand exceptional compute power, scalability, and low latency. Designed in a dense 2U rack form factor, this enterprise-grade server delivers outstanding processing capabilities while maximizing data center efficiency.

Built to accelerate analytics, virtualization, and database applications, the Dell EMC PowerEdge R840 8×2.5″ combines powerful Intel® Xeon® Scalable processors with extensive memory capacity and flexible storage configurations. Organizations seeking reliable performance for demanding enterprise environments will find this platform ideal for their evolving infrastructure needs.

Powerful Four-Socket Architecture

At the core of the Dell EMC PowerEdge R840 8×2.5″ are up to four 2nd Generation Intel® Xeon® Scalable processors, each supporting up to 28 cores. This advanced architecture delivers exceptional parallel processing performance for compute-intensive applications.

The four-socket design enables businesses to run multiple workloads simultaneously while maintaining consistent performance. Whether supporting large databases, virtualization clusters, or enterprise applications, the Dell EMC PowerEdge R840 8×2.5″ provides the processing power needed for modern data centers.

Its scalable design allows organizations to expand resources as workloads grow, ensuring long-term investment protection.

Exceptional Memory Capacity

The Dell EMC PowerEdge R840 8×2.5″ features an impressive 48 DDR4 DIMM slots supporting RDIMM and LRDIMM memory at speeds of up to 2933 MT/s.

The platform supports:

• Up to 6TB of DDR4 memory
• Up to 12 NVDIMMs with a maximum capacity of 384GB
• Up to 24 Intel® Optane™ DC Persistent Memory modules
• Maximum memory capacity of 15.36TB when combining PMem and LRDIMM technologies

This enormous memory capacity enables the Dell EMC PowerEdge R840 8×2.5″ to handle in-memory databases, analytics workloads, and virtualization environments with exceptional efficiency.

Flexible and High-Speed Storage

Storage flexibility is one of the major strengths of the Dell EMC PowerEdge R840 8×2.5″. The server supports multiple storage configurations to meet diverse business requirements.

The front drive bays can support:

• Up to 8 × 2.5-inch SAS/SATA HDDs or SSDs
• High-performance NVMe storage options
• Enterprise-grade storage expansion

The ability to deploy all-flash configurations helps organizations minimize latency while maximizing application responsiveness.

Accelerate Performance with NVMe

The Dell EMC PowerEdge R840 8×2.5″ is optimized for high-speed storage acceleration. NVMe technology dramatically improves throughput and reduces latency compared to traditional storage systems.

Organizations can leverage NVMe drives for:

• Real-time analytics
• High-frequency transaction processing
• Virtualized environments
• Data-intensive enterprise applications

This capability allows the Dell EMC PowerEdge R840 8×2.5″ to deliver faster business insights and improved operational efficiency.

Advanced Expansion Capabilities

The Dell EMC PowerEdge R840 8×2.5″ offers extensive expansion options to support evolving business needs.

Key expansion features include:

• Up to 6 PCIe Gen3 slots
• Support for multiple networking configurations
• Flexible storage controller options
• GPU and FPGA acceleration support

The server can accommodate up to two double-width GPUs or two full-height FPGAs, making it suitable for AI, machine learning, and accelerated computing workloads.

Intelligent Systems Management

Managing enterprise infrastructure becomes easier with the integrated management capabilities of the Dell EMC PowerEdge R840 8×2.5″.

The server includes:

• iDRAC9
• iDRAC Direct
• Quick Sync 2 wireless management
• OpenManage Enterprise
• OpenManage Mobile

These tools simplify deployment, monitoring, updates, and troubleshooting, allowing IT teams to reduce administrative overhead and improve operational efficiency.

Enterprise-Grade Security

Security is built into every layer of the Dell EMC PowerEdge R840 8×2.5″ to protect critical business data.

Security features include:

• TPM 1.2/2.0 support
• Secure Boot
• Silicon Root of Trust
• Cryptographically signed firmware
• System Lockdown mode
• Secure Erase capabilities

These technologies help safeguard systems against cyber threats while maintaining compliance and data integrity.

Reliable Power and Cooling

The Dell EMC PowerEdge R840 8×2.5″ supports multiple high-efficiency power supply options ranging from 750W to 2400W, including Platinum and Titanium-rated PSUs.

Additional reliability features include:

• Hot-plug redundant power supplies
• N+1 fan redundancy
• Advanced thermal management

These capabilities ensure continuous uptime and efficient operation in demanding data center environments.

Ideal Use Cases

The Dell EMC PowerEdge R840 8×2.5″ is well suited for:

• Large enterprise databases
• Virtualization infrastructure
• Data analytics platforms
• ERP applications
• High-performance computing
• AI and machine learning workloads

Its combination of processing power, memory scalability, and storage flexibility makes it an excellent solution for mission-critical applications.

Conclusion

The Dell EMC PowerEdge R840 8×2.5″ delivers exceptional performance, scalability, and reliability in a compact 2U platform. With support for four Intel Xeon processors, massive memory capacity, high-speed NVMe storage, and advanced management tools, it is built to meet the demands of modern enterprise environments.

Whether deployed for virtualization, analytics, or mission-critical workloads, the Dell EMC PowerEdge R840 8×2.5″ provides a future-ready infrastructure solution designed to accelerate business growth and maximize operational efficiency.

For more details, you can view the data sheet on our website using the following links: Spec sheet , Technical Guide
