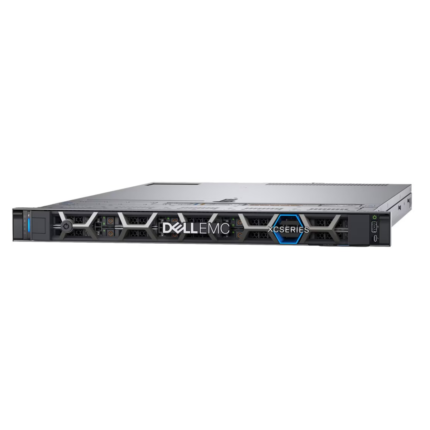

Dell EMC XC640 10×2.5″ Server

The Dell EMC XC640 10×2.5″ is a powerful and flexible 1U rack server designed to handle modern data center workloads with high efficiency and scalability. Built to support hyper-converged infrastructure (HCI), virtualization, and enterprise applications, this server delivers strong performance in a compact form factor.

With support for dual Intel® Xeon® Scalable processors, high-speed memory, and up to 10×2.5″ drives, the Dell EMC XC640 10×2.5″ provides the ideal balance between performance, storage density, and reliability.

High-Performance Processing

The Dell EMC XC640 10×2.5″ supports up to two Intel® Xeon® Scalable processors, enabling businesses to run demanding workloads efficiently. This dual-socket architecture enhances parallel processing and ensures smooth performance across virtual machines, databases, and cloud environments.

It is designed for compute-intensive tasks, making it suitable for enterprise IT infrastructures that require consistent and scalable performance.

Advanced Memory Architecture

Equipped with 24 DIMM slots, the Dell EMC XC640 10×2.5″ supports DDR4 RDIMM and LRDIMM memory with speeds up to 2666 MT/s. The system offers impressive memory scalability:

• Up to 786GB with a single processor (LRDIMM)
• Up to 1.5TB with dual processors (LRDIMM)
• Up to 786GB using RDIMM configurations

This allows organizations to run memory-intensive applications such as:

• Virtualization platforms
• Large-scale databases
• Data analytics workloads

Flexible Storage Options

The Dell EMC XC640 10×2.5″ supports up to 10 × 2.5-inch hot-swappable drives, offering excellent storage flexibility.

Supported drive types include:

• SAS
• SATA
• SSD
• Nearline SAS

This flexibility enables businesses to optimize storage for performance, capacity, or cost, depending on workload requirements.

Reliable Storage Controllers

The system supports advanced storage controller options such as:

• HBA330
• Boot Optimized Storage Subsystem (BOSS)

These controllers provide efficient data handling, fast boot capabilities, and reliable storage management, ensuring high availability and performance.

Expansion and Connectivity

The Dell EMC XC640 10×2.5″ includes support for PCIe Gen3 expansion slots, allowing integration of additional NICs, storage controllers, or other expansion cards.

Networking options include:

• RJ-45 ports supporting up to 1Gbps and 10Gbps
• SFP+ ports for high-speed networking
• SFP28 ports supporting up to 25Gbps

The system supports up to four onboard NIC ports with additional expansion via PCIe cards, ensuring seamless connectivity and scalability.

Efficient Power and Cooling

The Dell EMC XC640 10×2.5″ supports multiple power supply configurations, including:

• 750W AC (Platinum / Titanium)
• 1100W AC/DC
• 1600W AC

Redundant power supply options ensure continuous operation and high availability. The system is designed with advanced cooling technologies, including high-performance fan configurations, to maintain optimal temperatures even under heavy workloads.

Ports and Interfaces

The server includes a wide range of connectivity options:

• Front USB 2.0 and Micro USB (iDRAC Direct)
• Rear USB 3.0 ports
• Internal USB 3.0 port
• VGA ports (front and rear)
• Serial port for management
• Dedicated management interfaces

This ensures easy integration and flexible management in different IT environments.

Intelligent Systems Management

The Dell EMC XC640 10×2.5″ features integrated iDRAC for advanced remote management. This allows administrators to monitor, manage, and troubleshoot systems remotely, reducing downtime and operational costs.

Additional features include:

• Remote system access
• Real-time monitoring
• Automated alerts
• Firmware and driver management

Built-In Security

Security is a key aspect of the Dell EMC XC640 10×2.5″, with built-in features designed to protect data and infrastructure:

• Secure Boot
• Firmware protection
• TPM support
• System Lockdown capabilities

These features help safeguard against cyber threats and unauthorized access.

Environmental Efficiency

The Dell EMC XC640 10×2.5″ is engineered for reliable operation in various data center environments. It supports:

• Operating temperatures from 10°C to 35°C (standard)
• Expanded operating range from 5°C to 40°C
• High-altitude operation up to 3,048 meters

Advanced thermal design ensures efficient cooling while maintaining performance stability.

Ideal Use Cases

The Dell EMC XC640 10×2.5″ is ideal for:

• Hyper-converged infrastructure (HCI)
• Virtualization and cloud computing
• Enterprise applications
• Data analytics
• Software-defined storage

Conclusion

The Dell EMC XC640 10×2.5″ delivers a powerful combination of performance, scalability, and flexibility in a compact 1U form factor. With dual Intel Xeon processors, large memory capacity, and support for up to 10×2.5″ drives, it is designed to meet the needs of modern data centers.

Whether you are expanding your IT infrastructure or optimizing performance for demanding workloads, the Dell EMC XC640 10×2.5″ provides a reliable and future-ready solution.

For more details, you can view the data sheet on our website using the following links: Technical Guide
