Fortinet FortiGate 100EF Firewall
EGP20,000.00 Tax excluded
- Type: FORTIGATE 100EF
- Switch Type: Managed
- Power Over Ethernet (PoE): Not supported
- Number of Ports: 14 x GE RJ45 ports, 8x SFP ports.
- Firewall throughput: 7.4 Gbps
- Threat protection throughput: 250 Mbps
- Layer: Layer 3
- License: No License
1 in stock
20
People watching this product now!
20
Items sold in last 3 months
Condition : Used
The FortiGate-100EF is the ideal security solution for small and medium businesses or branch offices with larger networks. Depending on licensing, the series combines firewall, IPSec and SSL VPN, application control, intrusion prevention, anti-malware, anti-spam, P2P security and web filtering in a single device. Unlike the FG-100E, the 101E model also has 480GB of SSD storage
FG-100EF Overview
FG-100EF is the Fortinet NGFW Middle-range Series FortiGate 100EF firewall. The FortiGate 100E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.
Quick Spec
Table 1 shows the quick spec.
| Sku | FG-100EF |
| Firewall | 7.4 Gbps |
| IPS | 500 Mbps |
| NGFW | 360 Mbps |
| Threat Protection | 250 Mbps |
| Interfaces | 2x GE RJ45 MGMT/DMZ Ports
2x GE RJ45 WAN Ports 2x GE RJ45 HA Ports 8x GE RJ45 Ports 8x GE SFP Slots |
Product Details

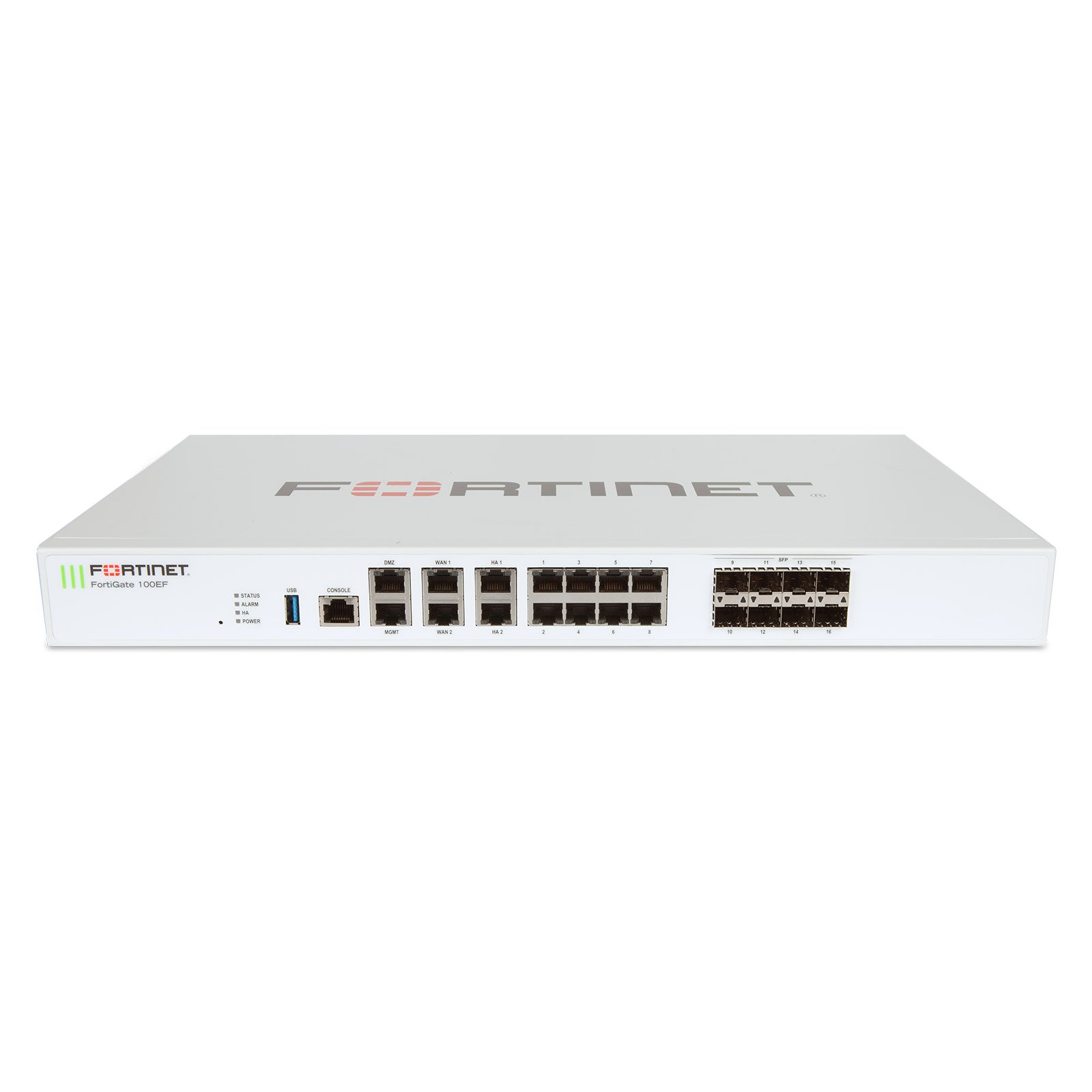

Figure 1 shows the front view of FG-100EF.
Note:
| ① | USB Port |
| ② | Console Port |
| ③ | 2x GE RJ45 MGMT/DMZ Ports |
| ④ | 2x GE RJ45 WAN Ports |
| ⑤ | 2x GE RJ45 HA Ports |
| ⑥ | 8x GE RJ45 Ports |
| ⑦ | 8x GE SFP Slots |
Compare to Similar Item
Table 2 shows the comparison of FG-100E and FG-100EF.
| Sku | FG-100E | FG-100EF |
| Firewall | 7.4 Gbps | 7.4 Gbps |
| IPS | 500 Mbps | 500 Mbps |
| NGFW | 360 Mbps | 360 Mbps |
| Threat Protection | 250 Mbps | 250 Mbps |
| Interfaces | 20 x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt. port, 2x HA ports, 14x switch ports),
2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) 480 GB onboard storage. Maximum managed FortiAPs (Total / Tunnel) 64 / 32 |
14x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt. port, 2x HA ports, 8x internal switch ports),
8x SFP ports. Maximum managed FortiAPs (Total / Tunnel) 64 / 32 |
Key Features:
High Performance: The FortiGate 100EF delivers robust performance with a firewall throughput of 7.4 Gbps, ensuring minimal latency and efficient traffic management.
Advanced Threat Protection: Equipped with intrusion prevention (IPS) capabilities, the device offers an IPS throughput of 500 Mbps, safeguarding networks against sophisticated threats.
Comprehensive Connectivity: The appliance features a versatile port configuration, including multiple GE RJ45 and SFP ports, allowing for flexible network designs and expansions.
Secure SD-WAN: The FortiGate 100EF integrates secure SD-WAN functionality, optimizing WAN performance while maintaining security across distributed networks.
| Manufacturer | Fortinet |
|---|---|
| Model | FortiGate 100EF |
| PN | P18828-04-03 |
| Product Type | Network Security Appliance |
| Series | FortiGate Mid-Range Series |
| Power Over Ethernet (PoE) | Not supported |
| Interfaces | 2 x GE RJ45 MGMT/DMZ Ports 2 x GE RJ45 WAN Ports 2 x GE RJ45 HA Ports 8 x GE RJ45 Ports 8 x GE SFP Slots |
| Layer Support | Layer 3 |
| Form Factor | 19-inch rack mount (1U) |
| Firewall | -Firewall Throughput: 7.4 Gbps -Threat Protection Throughput: 250 Mbps -IPS Throughput: 500 Mbps -Application Control Throughput: 1.0 Gbps -SSL Inspection Throughput: 130 Mbps |
| Typical application area | Medium-sized and distributed enterprise |
| VPN | -IPSec VPN Throughput: 4.0 Gbps -SSL VPN throughput: 130 Mbps -Site-2-Site IPSec VPN Tunnels: 2,000 -Client VPN Tunnels: 10,500 (10.000 IPSec (max.), 500 concurrent SSL VPN users) -SSL VPN Client Licenses included: Unlimited IPSec VPN Client Licenses included: Unlimited |
| Network | -Packets per second (Mpps): 7 -Concurrent sessions: 2,000,000 -Concurrent Sessions (SSL); 125,000 -New Sessions per second: 30,000 -Network latency: 3µs -Maximum supported switches (external); 24 |
| Operating temperature | 0°C to 40°C |
| Console Cable | RJ45 to DB9 serial cable |
| Fan | Internal cooling fans |
| Firewall Throughput | 7.4 Gbps |
| IPS Throughput | 500Mbps |
| NGFW Throughput | 360 Mbps |
| Threat Protection Throughput | 250 Mbps |
| IPsec VPN Throughput | 4 Gbps |
| Concurrent Sessions | 2,000,000 |
| New Sessions/Second | 30,000 |
| Management Features | Web-based GUI Command-Line Interface (CLI) Centralized management via Forti Manager Cloud-based management via Fort iCloud Support for REST APIs SNMP support Syslog for logging |
| Network Size Class | 50-250 users/devices |
| Dimensions (WxDxH) | 432mm x 254mm x 44.5mm |
| Weight | 3.30 kg |
| Power Supply | Internal Power Supply Unit |
| Power Required | 100–240V AC, 60–50 Hz |
| Number of Power Supply Units included / maximum | 1 / 2 |
| Condition | Used |
| Warranty | 6 Months |
