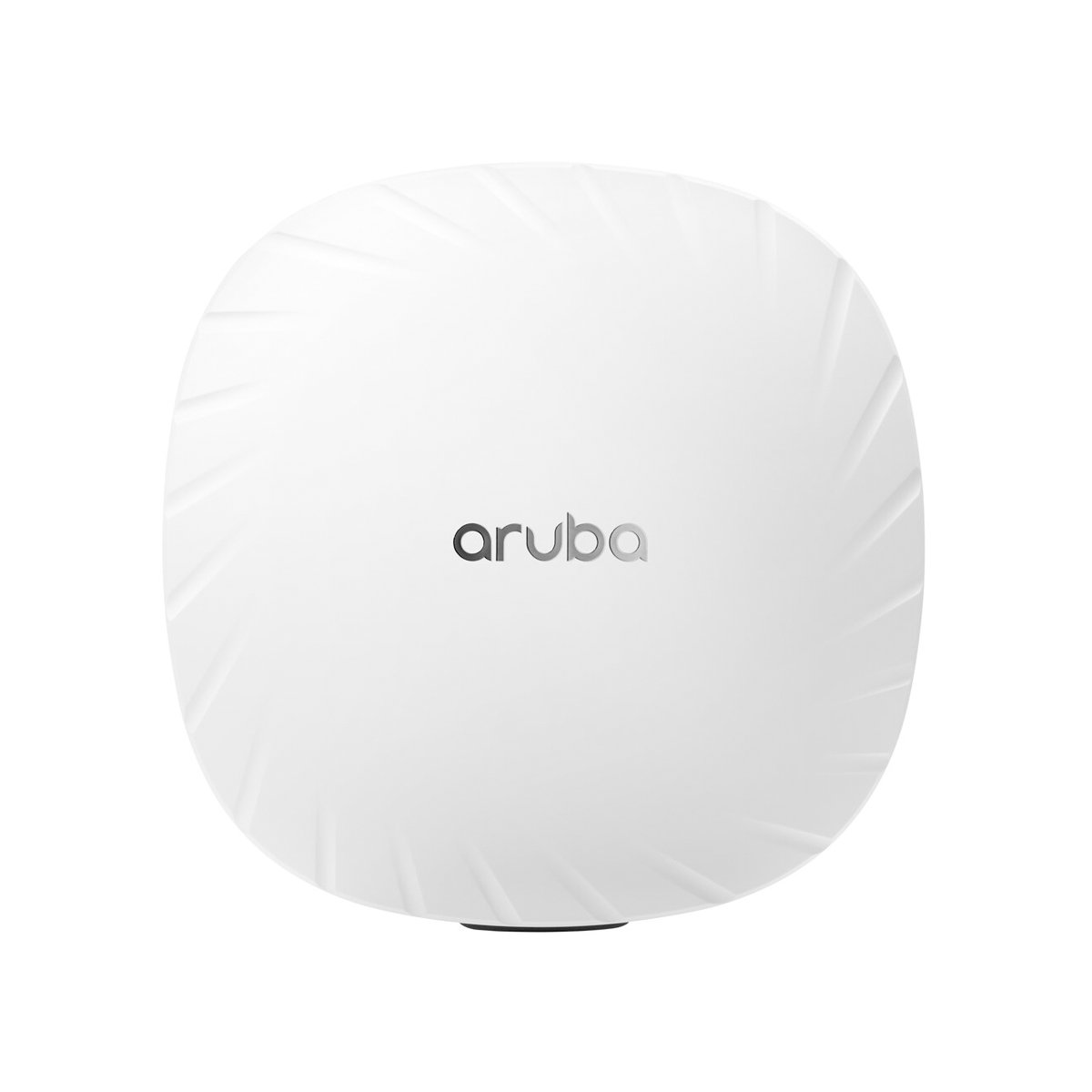

HPE Aruba AP-535 (US) JZ336A Access Point

HPE Aruba Networking AP-535 (US) Dual Radio 4×4 802.11ax Internal Antennas Unified Campus AP

The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.  This series can be deployed using Zero Touch Provisioning, without on‑site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution.

 AP-535

Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate.

Dual radio AP supporting 5 GHz and 2.4 GHz bands (4×4 MIMO).

Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEF).

IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity.

Deploy models with internal antennas or connectorized models that support external antennas to meet range of environments

Boost your Wi-Fi 6 Performance of AP-535

• The HPE Aruba Networking 530 Series Campus Access Points are designed to simultaneously serve multiple clients and traffic types providing up to 2.97 Gbps combined aggregate data rate.
• Dual-radio (dual 4×4 MIMO) 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO).
• The AP includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
• Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
• Two 5 Gbps ports provide flexibility to support speeds of 1, 2.5, or 5 Gbps (or 100 Mbps).

Security By Design

• The HPE Aruba Networking AP-535 Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
• It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
• The AP simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
• For enhanced device assurance, the 530 series include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.

Key Features of AP-535:

• High Performance:
  • Up to 2.97 Gbps aggregate data rate.
  • Supports OFDMA, MU-MIMO, and Target Wait Time (TWT) for efficient multi-user performance.
• Simplified Deployment:
  • Zero Touch Provisioning allows quick setup without onsite technical expertise.
• Advanced Connectivity Options:
  • Includes dual 5 Gbps Ethernet ports for fast wired connections.
  • Offers models with internal or external antennas for versatile deployment.
• Centralized Management:
  • Managed via Aruba Central with a unified view of wired and wireless LANs, WANs, and VPNs.
  • Features AI-powered analytics, automation, and orchestration.
• Security and Warranty:
  • Built-in advanced security features.
  • Backed by a limited lifetime warranty.

• Security and Management:
  • Trusted Platform Module (TPM)
  • Secure Core Technology (SCT)
  • Security slot (Kensington lock compatible)
• Wireless Optimization:
  • Adaptive Radio Management (ARM)
  • ClientMatch technology

• Technical Features

• • Aruba Air Match
  • Dynamic Frequency Selection (DFS)
  • Advanced Cellular Coexistence (ACC)
• Radio and Transmission:
  • Maximum Ratio Combining (MRC)
  • Low Density Parity Check (LDPC)
  • Transmit Beamforming (TxBF) ready
  • Direct Sequence Spread Spectrum (DSSS)
  • Cyclic Delay Diversity (CDD)
  • Space Time Blocking Code (STBC)
  • Cyclic Shift Diversity (CSD)
  • 4×4 MU-MIMO technology
  • Very High Throughput (VHT) support
  • High Efficiency (HE) support
  • Orthogonal Frequency Division Multiplexing (OFDM)
  • Orthogonal Frequency Division Multiple Access (OFDMA)

Performance Features of AP-535

• Data Aggregation:
  • Packet aggregation (A-MPDU, A-MSDU)
• Power Management:
  • Intelligent Power Monitoring (IPM)
  • Energy-Efficient Ethernet (EEE)
  • Custom deep-sleep mode
  • LED off mode

Monitoring and Analytics

• Air Monitor (AM)
• Spectrum analyzer

Other Features

• High-Throughput (HT) support
• APPRF technology
• LACP (Link Aggregation Control Protocol) support
• Target Wait Time (TWT)
• Unified AP support

This access point series is ideal for modern, high-demand network environments.

You can also view AP-535 datasheet here
