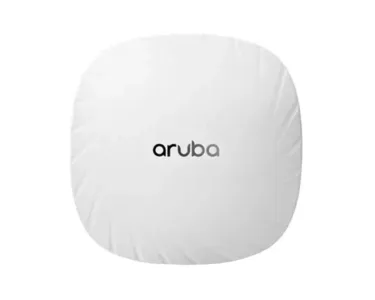

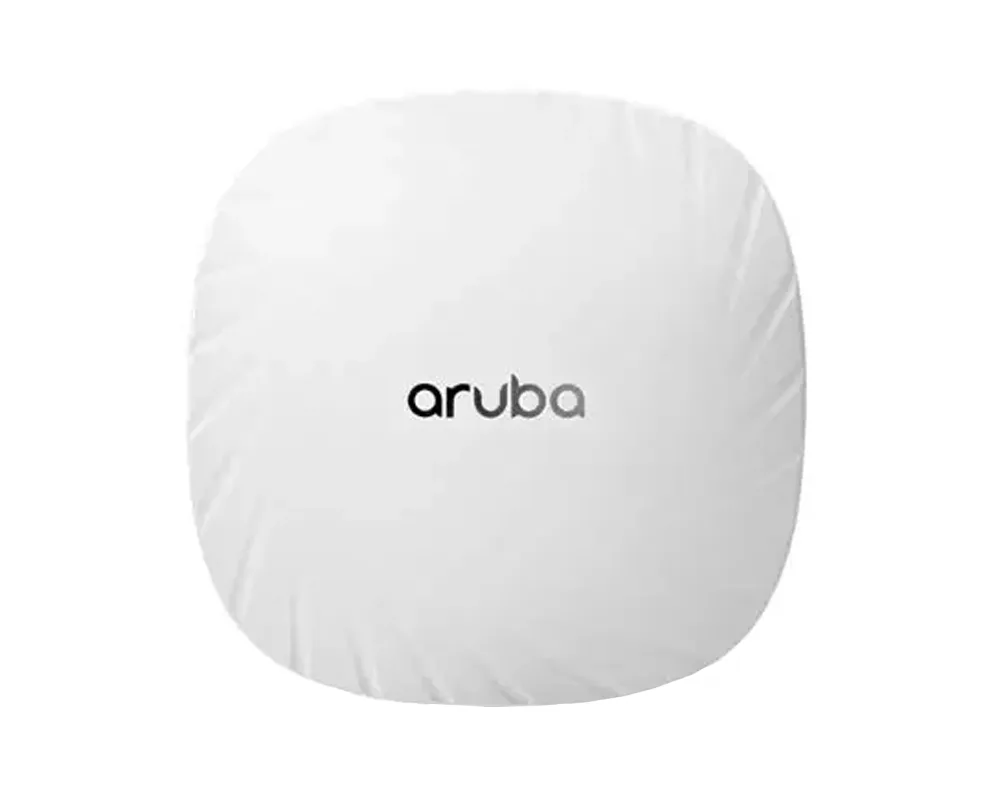

HPE Aruba AP-555 JZ356A (RW) Access Point
EGP18,000.00 Tax excluded
Quick tech specs:
- 555 (US)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 6E(802.11ax)
- wireless access point
- ZigBee, Bluetooth
- 2.4 GHz, 5 GHz
1 in stock
14
People watching this product now!
18
Items sold in last 3 months
Condition : Used
HPE Aruba Networking AP-555 (RW) Dual Radio 8×8/4×4 802.11ax Internal Antennas Unified Campus AP
The HPE Aruba Networking AP-555 Access Points deliver robust Wi-Fi 6 performance for mobile and IoT devices operating in high-density areas. Offering up to 5.37 Gbps of total aggregate throughput through dual radios and an optional tri-radio mode, this series is designed on Wi-Fi 6 (IEEE 802.11ax) technology and features OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to enhance multi-user capacity and overall efficiency. The AP-555 series supports Zero Touch Provisioning, enabling deployment without on-site technical staff, simplifying setup for branch locations and remote environments.
AP-555
High-performance Wi-Fi 6 access points (APs)provide up to 5.37 Gbps combined aggregate data rate
Optional tri-radio mode with two 5 GHz and one 2.4 GHz radio (4×4 MIMO).
Protects with encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEF).
IoT-ready with support for Bluetooth 5 and Zigbee.
Two 5 Gbps ports for fast wired connectivity.
Top Wi-Fi 6 Performance
- The HPE Aruba Networking of AP-555Optional tri-radio mode supports two 5 GHz radios and one 2.4 GHz radio (4×4 MIMO).
- The AP includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
- Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
- Two 5 Gbps ports provide flexibility to support speeds of 1, 2.5, or 5 Gbps (or 100 Mbps).
Enhanced Security
- The HPE Aruba Networking AP-555 Access Points deliver advanced security through Dynamic Segmentation, eliminating the difficult and error-prone process of handling static VLANs, ACLs, and subnets by automatically applying policies and ensuring that traffic stays isolated and protected.
- They provide stronger authentication and encryption with WPA3, secure storage of guest credentials and keys using Enhanced Open, and policy enforcement firewalls (PEF) to control user and IoT access.
- The AP improves policy management by leveraging the PEF to tunnel all traffic from the access point to the gateway (or mobility controller) for complete end-to-end encryption and inspection.
- For added device integrity, the 550 Series includes a built-in Trusted Platform Module (TPM) that safeguards the storage of keys, credentials, and boot code.
IoT Ready
- The HPE Aruba Networking of AP-555Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
- The AP supports an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support), as well as a USB port for increased flexibility, providing better security and reliable connectivity for IoT devices.
- HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Sustainability
- The 550 Series support AI-powered Dynamic Power Save mode, it enables APs to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization sustainability initiatives.
- The Intelligent Power Monitoring (IPM) feature provides the ability to enable or disable capabilities based on available PoE power.
- The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention.
| Technical Specifications of AP-555 | |
|---|---|

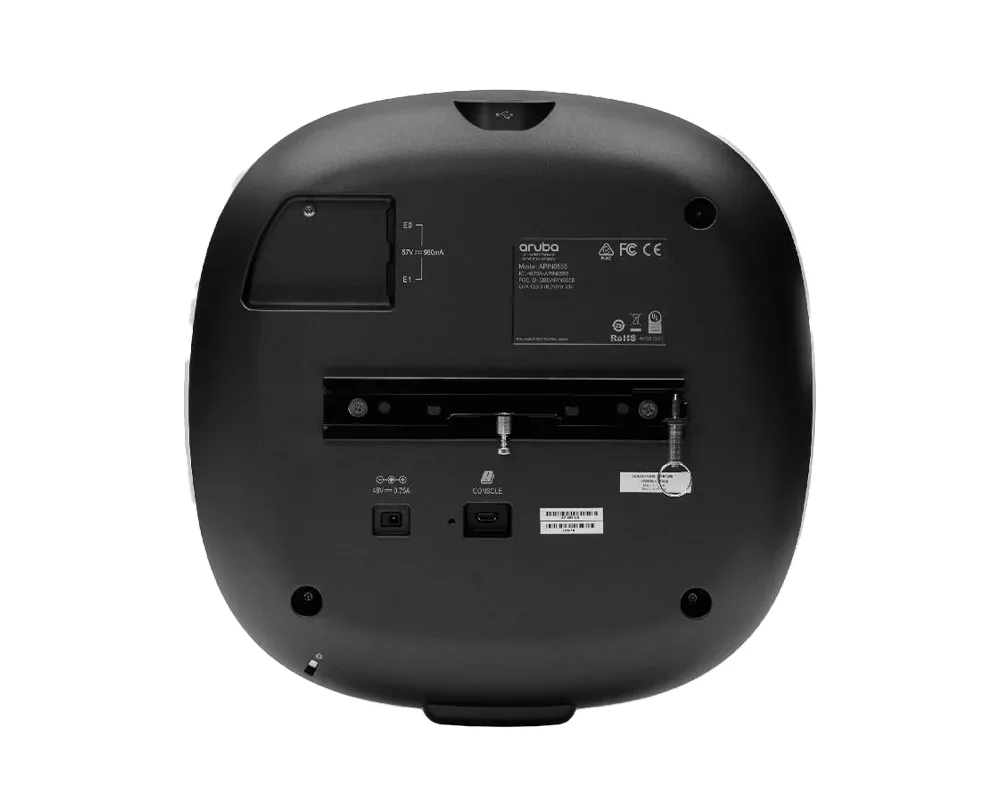

| Ports | E0, E1: HPE Smart Rate port (RJ-45, maximum negotiated speed 5 Gbps) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) |
| Mounting | pre-installed mounting bracket, for use with optional mounting kit, see the ordering guide. |
| Connectivity, standard | Wi-Fi 6 (IEEE 802.11ax) |
| Power consumption | Maximum (worst-case) power consumption (dual-radio operation): DC powered: 32.6W PoE powered (802.3bt or dual 802.3at): 38.2W PoE powered (802.3at, IPM disabled): 25.1W All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 6.0W (PoE powered) or 5.4W (DC powered). Maximum (worst-case) power consumption in idle mode (dual-radio operation): 15.0W (PoE) or 15.1W (DC) Maximum (worst-case) power consumption in deep-sleep mode: 3.8W(PoE) or 3.6W (DC) |
| Certifications | UL2043 plenum rating Bluetooth SIG WI-FI Alliance: Wi-Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location™ |
| Regulatory | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, contact your HPE representative |
| Wi-Fi antenna | Integrated downtilt omni-directional antennas for 4×4 MIMO in 2.4 GHz with peak antenna gain of 4.3 dBi, and 8×8 MIMO in 5 GHz with peak antenna gain of 5.8 dBi in 5 GHz. In tri-radio mode, the peak gain of the antennas for each of the 4×4 5 GHz radios is 5.5 dBi (radio 0L, lower half of 5GHz) and 5.6 dBi (radio 0U, upper half of 5 GHz). Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. |
| Radio coverage | AP type: Indoor, dual/tri-radio, 5 GHz and 2.4 GHz 802.11ax 4×4 MIMO 5 GHz radio (dual-radio operation): Eight spatial stream HE80 (or 4SS HE160) MIMO for up to 4.8 Gbps wireless data rate 5 GHz radio (tri-radio operation): Four spatial stream HE80 (or 2SS HE160) MIMO for up to 2.4 Gbps wireless data rate 2.4 GHz radio: Four spatial stream HE40 (HE20) MIMO for up to 1,147 Mbps (574Mbps) |
| Product dimensions (imperial) | 2.3 x 10.2 x 10.2 in |
| Weight | 3.46 lb |
| Product Code | JZ336A |
|---|---|
| Serial Number | 2525225 |
| Wifi standard | 802.11ax (Wi-Fi 6) |
| WiFi Bands | Dual band (2.4 GHz and 5 GHz) |
| Management Port | Yes |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption | POE powered (802.3bt or dual 802.3at): 30W POE powered (802.3at, IPM enabled): 25W DC powered: 29W maximum (worst case) |
| Input Voltage | IEEE 802.3bt (class 5) or 802.3at PoE, or direct DC power (via optional power supply) |
| Number of Ports | 2 Ethernet Ports • 1 x HPE Smart Rate – RJ-45 • 1 x 5GBase-T – RJ-45 • 1 x USB 2.0 – Type A • 1 x Console – Micro-USB |
| Internal Antennas | 4 |
| Throughput | • Total: 2974 Mbps • 5 GHz: 2400 Mbps • 2.4 GHz: 574 Mbps |
| Maximum Data Rates | • 2.4 GHz: 1.15 Gbps • 5 GHz: 2.4 Gbps • Aggregate Bandwidth: 3.55 Gbps |
| Maximum Associated Clients per Radio | Up to 256 clients per radio |
| Theoretical Total Clients | 512 |
| Recommended Clients | 75-100 Client per radio |
| Coverage Area | Approximately 150-200 m (varies based on environment and deployment) |
| Operating System | The Aruba AP535 supports both Aruba os and Instant os and you can switch between them based on your network requirements • Aruba OS: Used in controller-based setups for centralized management. • Instant OS: Controller-less mode for simplified deployments |
| Encryption Algorithms | WPA, WPA2, WPA3 |
| Wireless Transmission Speed | 2400 Mbps |
| Dimensions ( WxDxH ) | 23.88 cm x 23.88 cm x 5.59 cm (9.4 x 9.4 x 2.2 inches) |
| Weight | 2.8 lbs. |
| Wireless Communication Standard | IEEE 802.11ax (Wi-Fi 6) |
| Coverage Range (Approximate) | • Indoor (Open Space): 35-50 meters (115-165 feet) • Indoor (Dense Environment): 25-30 meters (82-98 feet) • Outdoor (Line-of-Sight): 100 meters (328 feet, with enclosure) |
| Communications Technology | Bluetooth, Zigbee |
| Spread Spectrum Method | OFDM, DSSS |
| Environmental Conditions | • Operating Temperature: 0°C to +50°C (+32°F to +122°F) • Storage Temperature: -40°C to +70°C • Operating Humidity: 5% to 93% non-condensing |
| Radio coverage | Dual-radio 4×4 MIMO IEEE 802.11ax AP with up-and downlink OFDMA and Multiuser MIMO (MU-MIMO). Maximum data rates of 2.4 Gbps in the 5 GHz band and 1,150 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 3.55 Gbps) |
| Data Transfer Rate | 2.4 Gbps |
| Mimo Configuration | 5GHz: Up to 2.4GHz: Up to |
| OFDMA | Supported |
| Target Wake Time (TWT) | Supported |
| Integrated lot Radios | Bluetooth 5 and Zigbee |
| Capacity | • Wireless Clients per Radio: 1024 • OFDMA Units: 37 • BSSIDs per Radio: 16 |
| Warranty | 6 months |
