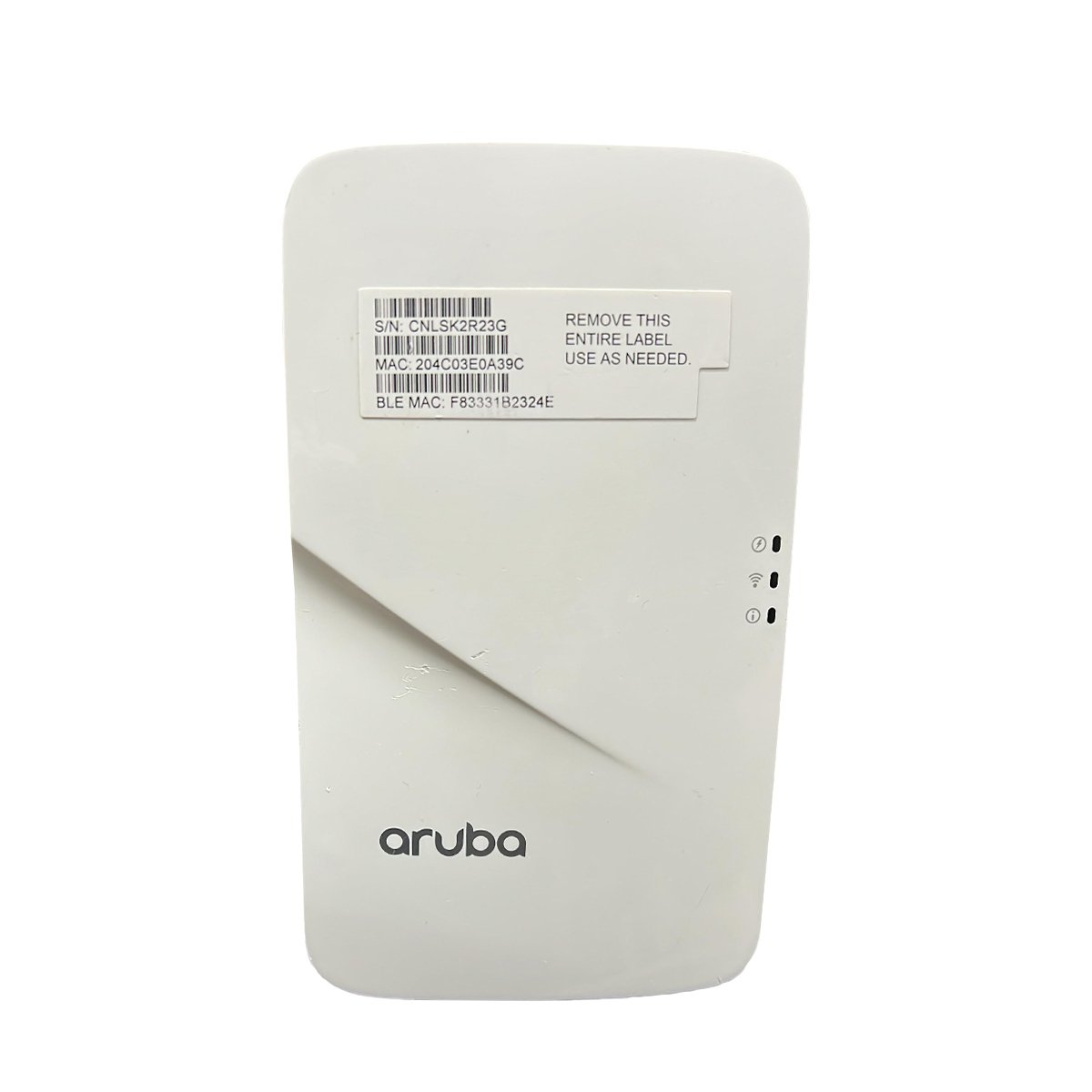

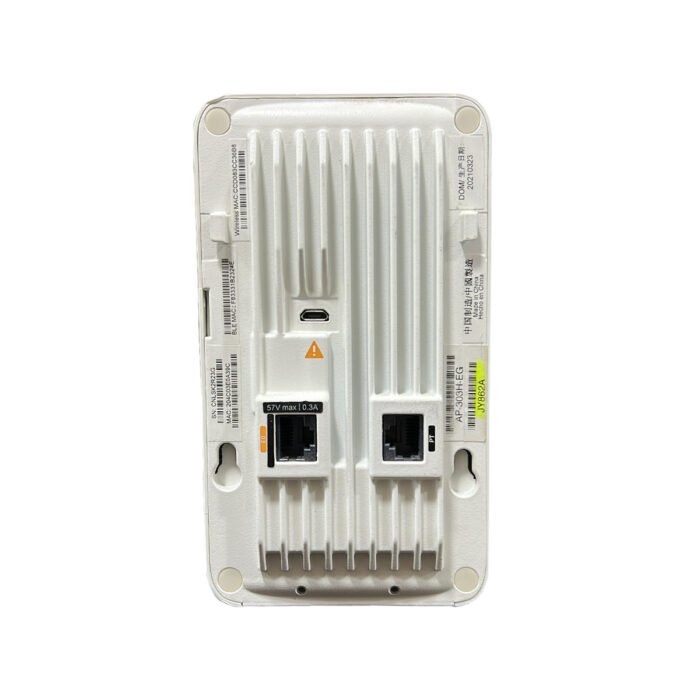

HPE Aruba Networking AP-303H Access Point
Tech specs:
- Wireless Standard: 802.11a/b/g/n/ac (Wave 2)
- Frequency Bands: Dual-band (2.4 GHz & 5 GHz)
- Max Data Rate: 867 Mbps (5GHz) / 300 Mbps (2.4GHz)
- Ethernet Ports: 1x uplink (PoE-PD), 3x local (1x PoE-PSE, 1x pass-through)
- Antenna: Integrated dual-band antennas (4.2dBi @ 2.4GHz, 5.6dBi @ 5GHz)
- MIMO: 2×2:2 MU-MIMO
Condition : Used
The Aruba AP-303H is a Qualcomm based dual-radio 802.11ac Wave 2 2×2:2 hospitality and branch AP with internal antennas, three local Gigabit Ethernet ports, PoE out and USB host interface. Supports wall-box and desk mount deployments
The multi-functional Wave 2 303H access point delivers best-in class Wi-Fi connectivity for hospitality and branch offices, enabling an always-on user experience with low Total Cost of Ownership (TCO).
With a maximum concurrent data rate of 867Mbps in the 5GHz band and 300Mbps in the 2.4GHz band, the 303H AP delivers high-performance Gigabit Wi-Fi for hospitality and branch environments at an attractive price point. It supports multi-user MIMO (MU-MIMO) and 2 spatial streams (2SS) to provide simultaneous data transmission for up to 2 devices, maximizing data throughput and improving network efficiency.
The 303H AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit. It is ideal for schools (dormitories, classrooms), hotels, medical clinics, branch offices and remote workstations which often require flexible and easy deployment options.
The 802.11ac Wave 2 303H AP combines wireless and wired access in a single compact device. Three local Gigabit Ethernet ports are available to securely attach wired devices to your network. One of these ports is also capable of supplying PoE power to the attached device.
Like all other Aruba Wave 2 APs, the 303H AP includes the enhanced ClientMatch™ technology that extends the client steering technology with MU-MIMO client awareness. It automatically identifies MU-MIMO capable mobile devices and steers those devices to the closest MU-MIMO capable Aruba access point to achieve the best WLAN performance in a mixed device environment during the technology transition period.
The integrated Bluetooth Aruba Beacon in the 303H AP simplifies the remote management of a large-scale network of battery-powered BLE Aruba Beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities.
Single-gang wall-box (primary hospitality deployment)
Desk mount (primary remote/branch deployment, using optional desk mount accessory)
CHOOSE YOUR DEPLOYMENT AND OPERATING MODES
Aruba Unified APs offer a choice of deployment and operating modes to meet your unique management and deployment requirements:
- The 303H AP is a unified AP that supports both controller-based and controllerless deployment modes, providing maximum flexibility
- Controller-based mode: When deployed in conjunction with an Aruba Mobility Controller, Aruba APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
- Controllerless (Instant) mode: The controller function is virtualized in a cluster of APs in Instant mode. As the network grows and/or requirements change, Instant deployments can easily migrate to controller-based mode.
- Remote AP (RAP) mode for branch deployments
- Air monitor (AM) for wireless IDS, rogue detection and containment
- Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
- Secure enterprise mesh
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, APs in Instant mode can configure themselves when powered up
Hardware Highlights
| Model | AP-303H |
| CPU | Qualcomm IPQ4029 |
| CPU MHz | 716 |
| Flash MB | 128NAND |
| RAM MB | 512 |
| WLAN Hardware | Qualcomm IPQ4029 |
| WLAN 2.4GHz | b/g/n |
| WLAN 5.0GHz | a/n/ac |
| Ethernet 1Gbit ports | 4 |
| USB ports | 1x 2.0 |
Specifications:
| AP-303H Specifications | |
|---|---|
303H ACCESS POINT SPECIFICATIONS
WI-FI RADIO SPECIFICATIONS
OTHER INTERFACES
WI-FI ANTENNAS
ENCRYPTED THROUGHPUT
POWER SOURCES AND CONSUMPTION
MOUNTING
MECHANICAL
ENVIRONMENTAL
REGULATORY
RELIABILITY
REGULATORY MODEL NUMBER
CERTIFICATIONS
MINIMUM SOFTWARE VERSIONS
| |
“Want to learn more? click here to download the document!”
| Model |
Aruba AP-303H (EG) |
|---|---|
| Product Code |
JY862A |
| Manufacturer |
Hewlett Packard Enterprise |
| Serial Number |
CNLSK2R23G |
| Management Port |
Yes |
| Wifi standard |
wi-fi 5 (IEEE 802.11ac wave 2) |
| WiFi Bands |
Dual band (2.4 GHz and 5 GHz) |
| MIMO Technology |
Yes |
| Mimo Configuration |
2×2:2 |
| Maximum Data Rates |
Up to 867 Mbps (5Ghz) |
| Multi-User MIMO (MU-MIMO) |
Supported |
| OFDMA |
Not supported |
| Target Wake Time (TWT) |
Not supported |
| Integrated lot Radios |
Bluetooth Low-Energy (BLE) |
| Expansion & Connectivity |
Ethernet: 1x uplink (PoE-PD), 3x local (1x PoE-PSE, 1x pass-through). |
| USB ports |
1x USB 2.0 |
| Power Over Ethernet (PoE) Supported |
PoE |
| Maximum Associated Clients per Radio |
UP to 256 clients per radio |
| Radio coverage |
Dual radio (2.4 GHz and 5 GHz bands) |
| Theoretical Total Clients |
512 |
| Recommended Clients |
75-100 Client per radio |
| Coverage Area |
Approximately 150-200 m (varies based on environment and deployment) |
| Power Consumption operational |
Max 9.7W |
| Input Voltage |
48V DC (PoE or direct DC input) |
| Throughput |
100 Mbps |
| Internal Antennas |
2 Internal Omni-directional Antennas |
| Wireless Transmission Speed |
Up to 867 Mbps |
| Operating System |
ArubaOS / InstantOS (Min. 6.5.2.0) |
| Data Link Protocol |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Encryption Algorithms |
WPA2, WPA3, AES, TKIP |
| Dimensions ( WxDxH ) |
Height: 5.9″ |
| Weight |
310g (Unit), |
| Wireless Communication Standard |
802.11ac Wave 2 |
| Spread Spectrum Method |
OFDM, DSSS |
| Environmental Conditions |
Operating Temperature: 0°C to +40°C |
| Communications Technology |
Wireless Networking (802.11ac) |
| Data Transfer Rate |
Up to 867 Mbps |
| Capacity |
256 clients per radio |
| Wireless Security |
WPA2-Enterprise, WPA3, 802.1X, MAC filtering |
| Compliant Standards |
FCC, CE, UL2043, Wi-Fi Alliance Certified |
| Maximum Wireless Clients per Radio |
256 |
| Warranty |
6 months |
