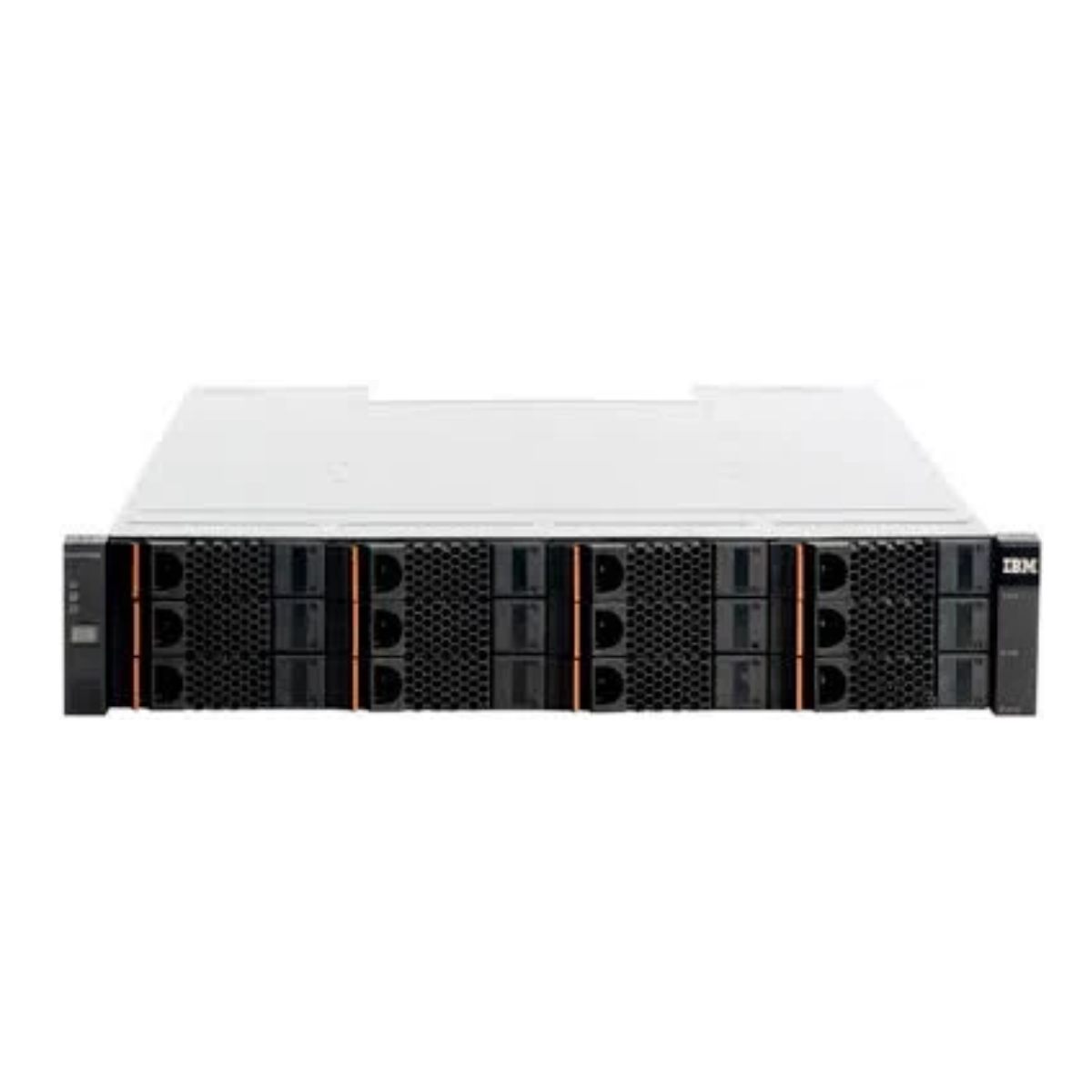

IBM Storwize V7000 Gen2 12×3.5″ Midrange Disk System

IBM Storwize V7000 Gen2– 12×3.5″ Midrange Disk Storage System

Overview

The IBM Storwize V7000 Gen2 is a powerful midrange storage system designed to meet the needs of modern enterprise environments. With its 12 x 3.5-inch drive bays, scalable architecture, and advanced virtualization features, the Storwize V7000 delivers high performance, reliability, and efficiency for businesses looking to optimize their storage infrastructure. It supports both block and file data, making it a versatile solution for a wide range of workloads including databases, virtualization, backup, and analytics.

Built on IBM’s innovative storage virtualization technology, the V7000 helps organizations simplify management, reduce costs, and improve data mobility. With features such as Easy Tier, Real-time Compression, and high availability configurations, it is ideal for medium to large enterprises seeking enterprise-level performance at a midrange price point.

Key Features of IBM Storwize V7000

Scalable Storage with 12 x 3.5″ Drive Bays

The system supports up to twelve 3.5” SAS or NL-SAS drives in a compact 2U form factor, allowing you to start small and scale up as business needs grow. It can be expanded further through the addition of IBM expansion enclosures.

Virtualization and Tiering

IBM’s integrated virtualization allows management of both internal and external storage as a single pool, simplifying the infrastructure. With Easy Tier technology, the V7000 can automatically move frequently accessed data to faster storage media, enhancing performance without manual intervention.

Real-time Compression

Improve storage utilization with Real-time Compression, which allows more data to be stored in less space without affecting application performance. This feature helps reduce hardware costs and improves efficiency.

High Availability and Redundancy

Dual-active controllers, redundant cooling, and power supplies ensure continuous operation. Advanced replication features like Metro Mirror and Global Mirror support disaster recovery and business continuity plans.

Typical Use Cases

• Database Workloads: Offers low latency and fast I/O for transactional databases like SQL Server, Oracle, or DB2.

• Virtualized Environments: Integrates seamlessly with VMware, Microsoft Hyper-V, and other hypervisors.

• Private Cloud: Acts as a reliable storage backbone for cloud infrastructures.

• Data Analytics: Ideal for storing and managing large volumes of analytical data.

• Backup and Archiving: High-capacity, efficient storage for backup targets and data archiving.

Technical Specifications

• Drive Support: 12 x 3.5″ SAS or NL-SAS hot-swappable drives

• Form Factor: 2U rackmount

• Controllers: Dual-active controllers with multi-core processors

• Cache Memory: Up to 32 GB per controller (depending on model)

• Expansion: Supports multiple expansion enclosures

• Interfaces: 8 Gb Fibre Channel, 1 GbE, 10 GbE, iSCSI, FCoE

• Redundancy: Dual hot-swap power supplies and fans

• RAID Support: RAID 0, 1, 5, 6, 10

• Software Features: Virtualization, Easy Tier, Thin Provisioning, Compression, Snapshots

Benefits of Choosing IBM Storwize V7000

Simplified Management

Through the IBM Spectrum Virtualize platform, administrators can manage heterogeneous storage environments from a single interface, reducing complexity and improving productivity.

Enterprise-Class Performance

The V7000 combines multi-core processors and advanced caching algorithms to deliver fast, consistent performance for critical workloads. Features like Easy Tier and compression maximize performance and capacity simultaneously.

Flexible Integration

The system supports a variety of connectivity options and integrates with existing SAN and IP-based infrastructures. Compatibility with VMware Site Recovery Manager and other platforms makes it easy to deploy in diverse IT environments.

Data Protection and Disaster Recovery

With native replication capabilities and snapshot management, the Storwize V7000 ensures your data is protected locally and remotely, supporting robust business continuity strategies.

Energy Efficiency and Cooling

The IBM Storwize V7000 is engineered for energy-efficient operation, with dynamic cooling fans and temperature monitoring that optimize airflow as needed. Its compact 2U form factor reduces space requirements while maintaining high capacity, helping data centers achieve better energy usage and reduced operating costs.
