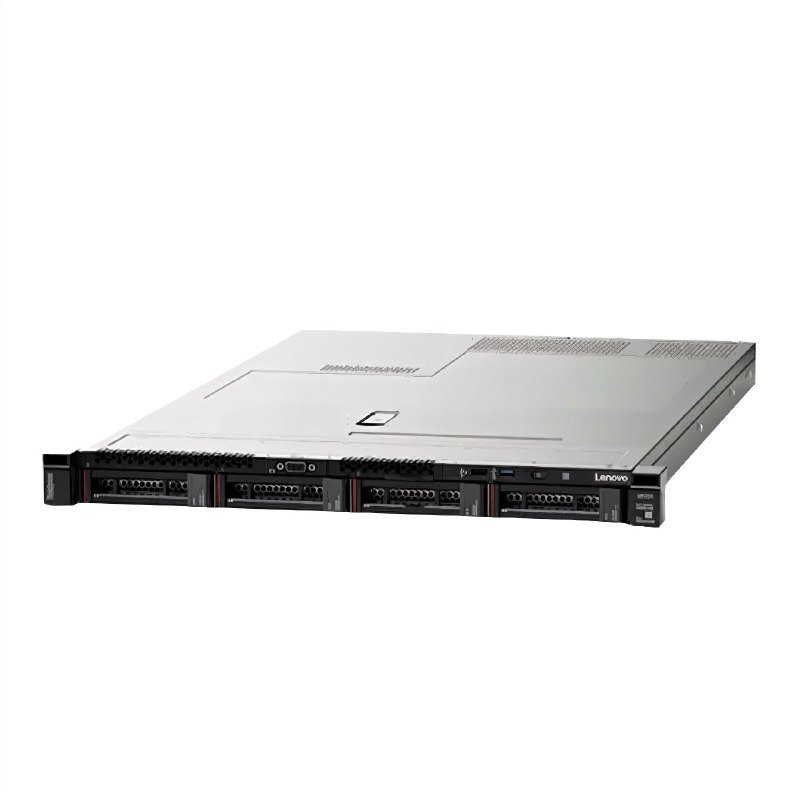

Lenovo ThinkSystem HR630X 4×3.5″: High-Performance, Scalable 1U Rack Server

The Lenovo ThinkSystem HR630X 4×3.5″ is a compact, cost-effective, and powerful 1U, two-socket rack server designed for performance, scalability, and efficiency. Powered by Intel Xeon Skylake Server 2S processors and supporting up to 24 DDR4 DIMMs, this server is ideal for a wide range of applications including file sharing, video processing, and enterprise data workloads. With support for 4×3.5-inch SATA/SAS/NVMe front-drive bays and optional 2×2.5-inch rear drive expansion, it offers excellent storage flexibility for growing businesses and data-driven environments.

Key Features of the Lenovo ThinkSystem HR630X 4×3.5″

High Reliability and Data Integrity

The Lenovo ThinkSystem HR630X 4×3.5″ supports ECC DDR4 memory running at 2666, 2400, 2133, and 1866 MHz, ensuring accurate data transfer and improved system reliability. RAID 0 and 1 configurations offer basic but effective data protection, while hot-swappable SATA, SAS, and NVMe SSD support allow for high-speed, flexible, and secure storage options. Additionally, its redundant Platinum-rated power supply ensures consistent uptime even in case of power unit failure.

High Availability for Mission-Critical Workloads

With dual Intel Xeon Skylake processors supporting up to 28 cores and 10.4 GT/s UPI per CPU, the HR630X 4×3.5″ delivers enterprise-class processing power. The server supports enterprise-grade 12 Gbps hard drives, enhancing I/O performance and system responsiveness. It also features OCP Mezzanine Ethernet modules for flexible, high-speed network connectivity—ideal for data centers and enterprise infrastructures demanding low latency and high throughput.

High Expandability and Memory Capacity

The Lenovo ThinkSystem HR630X 4×3.5″ offers flexible expansion capabilities with up to three PCIe slots—or one PCIe slot and two rear 2.5″ HDDs, depending on the configuration. With 24 DIMM slots supporting up to 3TB of DDR4 RAM, this system meets the needs of memory-intensive applications like virtualization, in-memory computing, and large-scale databases. Front and optional rear storage bays allow for maximum adaptability in enterprise deployments.

Efficient Management and Remote Access

Integrated with a built-in BMC (Baseboard Management Controller) chip, the Lenovo ThinkSystem HR630X 4×3.5″ provides robust, web-based out-of-band (OOB) management. Administrators can remotely monitor, control, and troubleshoot the server via HTTPS using a secure and user-friendly interface. Energy-saving fans with automatic speed control and front-access USB ports (via adapter) further improve the system’s usability and efficiency.

Comprehensive Security Features of the Lenovo ThinkSystem HR630X 4×3.5″

Physical and BIOS Security

The server is protected against unauthorized access through multiple hardware-level protections:

• Lockable cover (accessible only with a screwdriver)

• Secured rack handles and hot-swap components

• BIOS-level passwords (Admin/User)

• Secure Boot in both Standard and Custom modes, including support for PK, KEK, db, and dbx key management

Remote and Operational Security

The HR630X 4×3.5″ supports secure BMC access with:

• HTTPS and SSL encryption

• LDAP, Active Directory, and RADIUS authentication

• IPMI v2.0 support

• Remote KVM with privilege levels

• 5-minute auto-logout for inactivity

Other operational safeguards include ESD protection, temperature and fan monitoring, power failure detection, and smart battery management systems.

Data Security

With ECC memory and RAID protection, the Lenovo ThinkSystem HR630X 4×3.5″ ensures data remains consistent and available even during unexpected interruptions or hardware faults.

Why Choose the Lenovo ThinkSystem HR630X 4×3.5″?

The Lenovo ThinkSystem HR630X 4×3.5″ strikes the perfect balance between performance, flexibility, and cost-efficiency for businesses of all sizes. With enterprise-grade features packed into a 1U chassis, it offers:

• Dual-socket processing with Intel Xeon scalability

• Flexible 4×3.5” front and optional 2×2.5” rear storage

• Up to 3TB DDR4 memory capacity

• Integrated remote management via BMC

• Redundant power, hot-swappable components, and comprehensive security

Whether deployed as a storage server, file server, or virtualization host, the Lenovo ThinkSystem HR630X 4×3.5″ provides reliable and scalable infrastructure you can count on.
