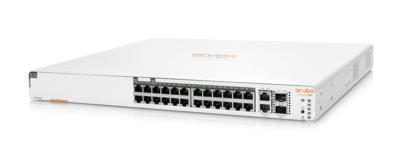

Aruba Instant On 1960 JL807A 24-Port PoE Switch

The Aruba Instant On 1960 JL807A is a powerful 24-port Gigabit PoE switch designed to provide reliable network connectivity, high-speed uplinks, and flexible power delivery for small and medium-sized business networks. Part of the Aruba Instant On 1960 Switch Series, the JL807A combines 24 autosensing 10/100/1000 Mbps RJ-45 ports, 10 Gigabit uplink connectivity, and a 370W PoE power budget in a compact enterprise networking solution.

The switch includes 20 Class 4 PoE ports and 4 Class 6 PoE ports, allowing organizations to connect and power compatible network devices such as wireless access points, IP phones, surveillance cameras, and other PoE-enabled equipment directly through Ethernet cables. It also provides 2 × 10GBASE-T RJ-45 ports and 2 × 10GbE SFP+ ports, giving businesses flexible options for high-speed uplinks and network expansion.

With 128 Gbps switching capacity and 95 Mpps throughput, the Aruba Instant On 1960 JL807A is built to handle demanding business network traffic while providing the flexibility needed for modern connectivity environments.

Aruba Instant On 1960 JL807A Key Features

The Aruba Instant On 1960 24G PoE Switch combines Gigabit access connectivity with 10 Gigabit uplinks and advanced PoE capabilities.

• 24 × 10/100/1000 Mbps RJ-45 ports
• 20 × Class 4 PoE ports
• 4 × Class 6 PoE ports
• 2 × 10GBASE-T RJ-45 ports
• 2 × 10GbE SFP+ ports
• 370W total PoE power budget
• Up to 240W of Class 6 PoE
• Up to 370W of Class 4 PoE
• 128 Gbps switching capacity
• 95 Mpps throughput
• 16,000 MAC address entries
• 32 IPv4/IPv6 static routing entries
• Internal power supply
• Compact business networking design
• Support for the Aruba Instant On ecosystem

24 Gigabit Ethernet Ports

The Aruba Instant On 1960 JL807A provides 24 autosensing RJ-45 Ethernet ports supporting 10/100/1000 Mbps connectivity. These ports are designed to provide Gigabit Ethernet access for computers, printers, IP phones, access points, cameras, servers, and other network devices.

The autosensing capability allows the ports to automatically detect the connected Ethernet speed, simplifying deployment across networks containing different generations of Ethernet devices.

For businesses that need a combination of standard Gigabit access and higher-speed uplinks, the JL807A provides a practical architecture by keeping the majority of endpoint connections at 1Gbps while reserving four dedicated 10GbE interfaces for higher-bandwidth connections.

Powerful PoE Connectivity

One of the main advantages of the Aruba Instant On 1960 PoE Switch is its integrated Power over Ethernet capability. The JL807A provides 20 Class 4 PoE ports and 4 Class 6 PoE ports, allowing compatible devices to receive both network connectivity and electrical power through a single Ethernet cable.

The switch provides a total 370W PoE power budget. According to HPE’s official specifications, the JL807A can provide up to 240W of Class 6 PoE or 370W of Class 4 PoE.

This makes the switch suitable for environments where multiple powered devices need to be connected without requiring a separate power adapter for every endpoint.

Typical PoE applications can include:

• Wireless access points
• IP telephones
• Security cameras
• IoT devices
• Other compatible PoE network equipment

By delivering power and data over Ethernet, the Aruba 1960 24 Port PoE Switch can simplify cabling and installation for business network deployments.

Class 4 and Class 6 PoE Support

The JL807A provides a combination of IEEE 802.3at Class 4 and IEEE 802.3bt Class 6 PoE support. The 24 RJ-45 ports include 20 Class 4 ports and 4 Class 6 ports.

Class 4 PoE provides a higher power level than standard PoE, making it suitable for many powered network devices. Class 6 PoE provides additional power capability for compatible devices that require more power.

This combination gives network administrators greater flexibility when deploying different types of PoE equipment across the same switching infrastructure.

Businesses can therefore use the Aruba Instant On 1960 JL807A to build a centralized connectivity and power infrastructure for compatible endpoints while maintaining separate high-speed interfaces for uplinks and network aggregation.

10 Gigabit Network Uplinks

Modern business networks often require more than Gigabit access connectivity. The Aruba Instant On 1960 JL807A addresses this requirement with four 10GbE uplink interfaces, consisting of 2 × 10GBASE-T RJ-45 ports and 2 × 10GbE SFP+ ports.

The 10GBASE-T ports provide high-speed Ethernet connectivity over compatible twisted-pair cabling, while the SFP+ interfaces provide a flexible option for supported 10GbE transceivers and fiber or direct-attach connectivity.

Having both 10GBASE-T and SFP+ interfaces gives organizations more flexibility when connecting the switch to servers, storage systems, aggregation switches, or other high-speed network infrastructure.

128 Gbps Switching Capacity

The Aruba Instant On 1960 JL807A provides a switching capacity of 128 Gbps. This capacity gives the switch the ability to handle high volumes of traffic across its Gigabit access ports and 10 Gigabit interfaces.

High switching capacity is particularly important when multiple endpoints are communicating simultaneously or when high-speed uplinks are used to connect the access switch to another part of the network.

For growing businesses, the combination of 24 Gigabit access ports and 10GbE uplinks provides a practical balance between endpoint connectivity and higher-bandwidth network connections.

95 Mpps Throughput

In addition to its 128 Gbps switching capacity, the Aruba 1960 JL807A provides a forwarding throughput of 95 million packets per second (Mpps). HPE also specifies latency of less than 4.4 microseconds at 100 Mbps, less than 2.2 microseconds at 1Gbps, and less than 1.1 microseconds at 10Gbps.

These specifications are relevant for businesses that require responsive network communication across a mixture of Gigabit and 10 Gigabit connections.

The combination of packet-processing performance, switching capacity, and high-speed uplinks makes the JL807A suitable for business networks with multiple simultaneous traffic flows.

16,000 MAC Address Table

The Aruba Instant On 1960 JL807A supports up to 16,000 MAC address entries. A MAC address table allows the switch to keep track of devices connected to the network and determine where Ethernet frames should be forwarded.

A larger MAC address table provides sufficient capacity for many business network environments containing computers, phones, access points, cameras, printers, servers, and other Ethernet-connected devices.

For organizations expanding their network over time, this capacity can provide room for a significant number of connected endpoints.

Layer 3 Routing Capability

The JL807A supports static routing and provides a routing table size of 32 IPv4/IPv6 static entries according to HPE’s official specifications.

This gives the switch Layer 3 capabilities that can be useful in business network designs where basic routing between network segments is required.

Static routing can help administrators create straightforward routing configurations between selected networks while maintaining a manageable network architecture.

Flexible 10G Connectivity

The combination of 10GBASE-T and SFP+ ports is one of the notable characteristics of the Aruba Instant On 1960 series.

The two 10GBASE-T interfaces use RJ-45 connectivity, making them convenient for compatible copper-based 10GbE connections. The two SFP+ ports provide another 10GbE interface option for supported transceivers and cabling solutions.

This flexibility can be useful when a business has different physical connectivity requirements within the same network infrastructure.

For example, a switch could use 10GBASE-T to connect to a nearby server or network device while using SFP+ connectivity for a fiber-based uplink, depending on the network design and compatible components.

Designed for Small and Medium-Sized Businesses

The Aruba Instant On 1960 Switch Series is positioned by HPE for small and medium-sized business networking environments. The series provides different configurations, including non-PoE and PoE models, allowing businesses to select a switch according to their port density, PoE, and uplink requirements.

The JL807A is particularly useful for businesses that require PoE connectivity for multiple devices while also needing 10GbE connectivity for higher-speed network links.

Its combination of 24 Gigabit ports, 370W PoE capacity, and four 10GbE interfaces makes it suitable for offices, retail environments, professional businesses, and other SMB deployments requiring modern wired networking.

Network Expansion and Scalability

The Aruba Instant On 1960 JL807A can be used as part of a larger network infrastructure where additional switching capacity may be required.

The 10GbE interfaces can provide higher-speed connections toward other network devices, while the 24 Gigabit access ports provide connectivity for local endpoints.

This architecture can help businesses create a hierarchical network where user and device connections are handled at the access layer while higher-speed interfaces provide connectivity to upstream network infrastructure.

The result is a flexible switching platform that can support network growth without requiring every endpoint to operate at 10Gbps.

Reliable Business Networking

Reliability is an important consideration when selecting a business network switch. HPE lists a calculated MTBF of 65.3 years for the JL807A under the specified conditions.

The switch also includes an internal power supply and is designed for continuous operation within its specified environmental conditions.

HPE specifies an operating temperature range of 0°C to 40°C and an operating relative humidity range of 15% to 95% at 40°C, non-condensing.

These specifications make it suitable for typical controlled indoor business and networking environments.

Compact Design

The Aruba Instant On 1960 JL807A measures approximately 350.5 mm deep × 442.5 mm wide × 43.95 mm high and weighs approximately 4.7 kg.

Its compact form factor makes it practical for installation in professional network environments where rack space and equipment organization are important.

The relatively compact chassis allows businesses to deploy the switch alongside other networking equipment without requiring excessive physical space.

Power and Electrical Specifications

The JL807A uses an internal power supply and supports an AC input range of 100–127VAC / 200–240VAC at 50/60Hz. HPE specifies a maximum power rating of 500W at 100–127V and 480W at 200–220V.

The total PoE power budget is 370W, which is a key specification for businesses planning to power multiple network devices through the switch.

When planning a PoE deployment, administrators should calculate the expected power requirements of connected devices to ensure that the total demand remains within the available PoE budget.

Why Choose the Aruba Instant On 1960 JL807A?

The Aruba Instant On 1960 JL807A is a strong choice for businesses that need a combination of Gigabit access connectivity, PoE, and 10 Gigabit uplink options.

Its 24 Gigabit RJ-45 ports provide connectivity for everyday business devices, while the 20 Class 4 and 4 Class 6 PoE ports allow compatible powered devices to receive power and network connectivity through the same Ethernet infrastructure.

The 370W PoE budget provides substantial capacity for a business deployment, while the two 10GBASE-T and two SFP+ ports provide flexible options for high-speed connectivity.

The 128 Gbps switching capacity and 95 Mpps throughput further support its role as a high-performance business access switch.

Aruba Instant On 1960 for Modern Business Networks

Modern business networks increasingly need to support wireless access points, IP phones, surveillance systems, computers, printers, IoT devices, and high-speed servers. A switch that combines PoE and high-speed uplinks can simplify network architecture while providing room for future growth.

The Aruba Instant On 1960 JL807A addresses these requirements through its 24 Gigabit Ethernet ports, integrated PoE, and four 10GbE interfaces.

The result is a flexible network switch that can support both standard business endpoints and higher-bandwidth infrastructure connections within the same device.

Conclusion

The Aruba Instant On 1960 JL807A is a powerful 24-port Gigabit PoE switch designed for business networks that require reliable connectivity, flexible PoE deployment, and high-speed 10GbE uplinks. With 20 Class 4 PoE ports, 4 Class 6 PoE ports, 370W of total PoE power, 2 × 10GBASE-T ports, and 2 × 10GbE SFP+ ports, it provides a versatile platform for modern network infrastructure.

Its 128 Gbps switching capacity, 95 Mpps throughput, 16,000 MAC address table, and 32 IPv4/IPv6 static routing entries further enhance its suitability for growing business networks.

For organizations looking for an Aruba 24-port PoE switch with 10G uplinks, the JL807A offers a practical combination of Gigabit access, high-power PoE, and flexible 10GbE connectivity in one business-focused networking platform.
