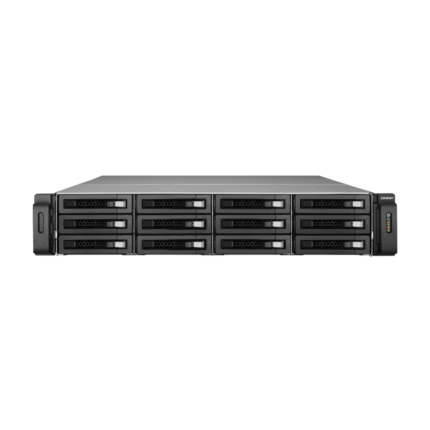

QNAP TS-EC1279U-RP 12-Bay Rackmount NAS

The QNAP TS-EC1279U-RP is a high-performance 12-bay rackmount NAS designed for business environments that require centralized storage, reliable data management, network file sharing, and scalable storage capabilities. Built with a Quad-Core Intel Xeon E3-1225 v2 3.2GHz processor, 4GB DDR3 ECC memory, and support for up to 12 SATA hard drives or SSDs, the QNAP TS-EC1279U-RP provides a flexible storage platform for demanding business and enterprise applications.

Designed in a compact 2U rackmount form factor, the TS-EC1279U-RP is suitable for server rooms, data centers, and professional IT environments where centralized rack-based storage is required. Its 12 hot-swappable and lockable drive bays support both 3.5-inch and 2.5-inch SATA drives, including SATA 6Gb/s and SATA 3Gb/s hard drives and SSDs.

The combination of ECC memory, Xeon processing, multiple network interfaces, RAID support, iSCSI capabilities, and optional 10GbE network expansion makes the QNAP TS-EC1279U-RP NAS a versatile platform for organizations looking to consolidate storage and network services into a dedicated rackmount system.

QNAP TS-EC1279U-RP Key Features

The QNAP TS-EC1279U-RP 12-Bay NAS offers a range of hardware and storage features designed for professional business environments.

• 12 × 3.5″/2.5″ SATA drive bays
• Support for SATA 6Gb/s and SATA 3Gb/s HDDs and SSDs
• 12 hot-swappable and lockable drive trays
• Quad-Core Intel Xeon E3-1225 v2 3.2GHz processor
• 4GB DDR3 ECC RAM
• Memory expandable up to 32GB
• 4 × Gigabit RJ-45 Ethernet ports
• Optional 10GbE and additional network expansion
• 2 × PCIe Gen 2 x4 expansion slots
• 2U rackmount form factor
• 600W power supply
• 2 × USB 3.2 Gen 1 ports
• 4 × USB 2.0 ports
• 2 × eSATA ports
• Support for RAID configurations
• iSCSI and IP-SAN/NAS unified storage capabilities
• Support for Windows, Mac, Linux, and UNIX file sharing
• VMware, Citrix, and Hyper-V compatibility

12-Bay SATA Storage

One of the main advantages of the QNAP TS-EC1279U-RP is its 12-bay storage architecture. The NAS can accommodate up to 12 SATA drives, providing organizations with significant flexibility when designing their storage environment.

The drive bays support both 3.5-inch and 2.5-inch SATA hard drives and SSDs, with compatibility for SATA 6Gb/s and SATA 3Gb/s interfaces. This allows businesses to select storage media based on their capacity, performance, and budget requirements.

The 12 drive bays also make it possible to create different storage configurations using supported RAID levels. Businesses can balance capacity, performance, and redundancy according to their specific requirements.

For example, organizations can use high-capacity HDDs when the primary requirement is large-scale data storage, while SSDs can be considered for workloads where faster storage access is required.

Hot-Swappable Drive Bays

The QNAP TS-EC1279U-RP 12-Bay NAS features 12 hot-swappable and lockable drive trays. Hot-swappable drive bays simplify storage maintenance by allowing compatible drives to be replaced without requiring the entire NAS to be removed from the rack.

This feature can be particularly valuable in business environments where storage availability is important and maintenance needs to be performed efficiently.

The lockable tray design also provides an additional physical safeguard against accidental drive removal.

With 12 hot-swappable bays, IT administrators have greater flexibility when maintaining or expanding the storage configuration of the QNAP NAS.

Quad-Core Intel Xeon Processor

The QNAP TS-EC1279U-RP is powered by a Quad-Core Intel Xeon E3-1225 v2 processor running at 3.2GHz. QNAP designed the model for demanding business workloads where processing capability is important alongside storage capacity.

The Xeon processor provides the computing foundation for the NAS operating system and its supported storage, networking, backup, and virtualization-related services.

A dedicated Xeon-based NAS can be useful for environments where the storage system needs to handle multiple concurrent tasks rather than simply providing basic file storage.

4GB DDR3 ECC Memory

Another important feature of the QNAP TS-EC1279U-RP is its use of 4GB DDR3 ECC RAM. ECC, or Error-Correcting Code memory, is designed to detect and correct certain types of memory errors, making it particularly relevant to professional computing and storage environments.

QNAP specifies that the system includes one 4GB memory module and provides four memory slots, with memory expandable up to 32GB using 8GB modules.

The expandable memory architecture provides additional flexibility for organizations that need more system resources as their storage services and workloads grow.

Gigabit Ethernet Connectivity

The TS-EC1279U-RP provides four Gigabit RJ-45 Ethernet ports, giving organizations multiple options for connecting the NAS to their network infrastructure. QNAP also lists support for optional dual-port 10GbE and 1GbE network expansion cards.

Multiple Ethernet ports can be useful for network segmentation, link aggregation, or creating additional connectivity paths depending on the network configuration.

For environments where Gigabit Ethernet is sufficient, the built-in interfaces provide standard network connectivity. Organizations requiring higher network bandwidth can use compatible network expansion hardware through the NAS expansion slots.

10GbE Network Expansion

The QNAP TS-EC1279U-RP is designed with network expansion in mind. Its PCIe expansion architecture allows compatible network cards to be installed, including optional 10GbE solutions.

QNAP describes the TS-EC1279U-RP as a 10GbE-ready platform, making it suitable for storage environments where network bandwidth can become a performance limitation.

High-speed Ethernet connectivity can be particularly useful for virtualization, large file transfers, centralized storage, and data-intensive workloads.

QNAP’s published performance testing also demonstrates the potential of the platform when configured with multiple 10GbE connections, although actual performance depends on the installed drives, RAID configuration, network infrastructure, and workload.

PCIe Expansion Slots

The TS-EC1279U-RP includes two PCIe Gen 2 x4 expansion slots designed for network and storage expansion.

These slots allow businesses to adapt the NAS to changing infrastructure requirements by adding compatible expansion hardware.

Network expansion can provide access to higher-speed Ethernet, while supported storage expansion options can help extend the capabilities of the NAS.

This makes the QNAP TS-EC1279U-RP more flexible than a fixed-interface storage system because its connectivity can be adapted to the requirements of the surrounding infrastructure.

RAID and Data Protection

The QNAP TS-EC1279U-RP supports multiple RAID configurations, allowing administrators to select an appropriate balance between storage capacity, performance, and redundancy.

QNAP’s official documentation lists support for Single Disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10, along with configurations involving hot spares.

RAID 0 can provide increased performance and usable capacity but does not provide redundancy, while mirrored or parity-based RAID configurations can provide different levels of protection against drive failure.

The appropriate RAID configuration depends on the organization’s workload, required capacity, acceptable risk, and backup strategy.

Unified IP-SAN and NAS Storage

The QNAP TS-EC1279U-RP is designed as a unified IP-SAN/NAS storage solution, making it suitable for organizations that need both file-based and block-level storage services. QNAP specifically positions the model for large-scale business organizations and data-intensive applications.

NAS functionality allows users and systems to access shared files over the network, while iSCSI capabilities can provide block-level storage resources to compatible servers and applications.

This combination makes the TS-EC1279U-RP suitable for more advanced business storage architectures.

iSCSI Storage

The QNAP TS-EC1279U-RP supports iSCSI, allowing storage resources to be presented to servers over an IP network.

iSCSI can be useful in virtualization and server environments where centralized block storage is required.

By combining iSCSI with RAID-protected internal storage and optional high-speed networking, the TS-EC1279U-RP can serve as part of a centralized storage infrastructure for supported business applications.

Virtualization Support

The TS-EC1279U-RP is designed to integrate with virtualization environments. QNAP documentation identifies the platform as compatible with VMware, Citrix, and Microsoft Hyper-V environments.

This compatibility allows the NAS to be considered for organizations using virtualized servers and centralized storage.

When deployed with suitable networking and storage configurations, the QNAP NAS can provide shared storage resources for supported virtualization infrastructure.

Cross-Platform File Sharing

The QNAP TS-EC1279U-RP NAS supports file sharing across multiple operating systems, including Windows, Mac, Linux, and UNIX. QNAP specifically highlights its cross-platform file-sharing capabilities as part of the platform’s business-oriented functionality.

This allows organizations with mixed operating-system environments to centralize business files on a single network storage platform.

Centralized file storage can simplify data organization and make it easier for authorized users and systems to access shared resources across the network.

USB and eSATA Connectivity

In addition to its Ethernet interfaces, the QNAP TS-EC1279U-RP provides several peripheral connectivity options.

The hardware includes:

• 2 × USB 3.2 Gen 1 ports
• 4 × USB 2.0 ports
• 2 × eSATA ports

QNAP specifies support for peripherals such as USB printers, flash drives, USB hubs, and USB UPS devices.

These interfaces provide additional flexibility for connecting external devices, storage equipment, and supported peripherals to the NAS.

2U Rackmount Form Factor

The QNAP TS-EC1279U-RP uses a 2U rackmount chassis, making it suitable for professional server rooms and data centers.

Its dimensions are approximately 88 mm high × 439 mm wide × 520 mm deep, while the net weight is approximately 15.88 kg.

The 2U design allows the 12-bay NAS to be installed within a standard rack-based infrastructure while maintaining a relatively compact footprint.

QNAP also states that the TS-x79 rackmount models comply with ANSI/EIA-RS-310-D rack mounting standards, subject to the rack requirements specified by QNAP.

Redundant Power Supply

The QNAP TS-EC1279U-RP includes a 600W power supply configuration, with QNAP’s official hardware documentation identifying the system as using redundant power supplies.

Redundant power is particularly relevant for business storage systems because it can help reduce the impact of a single power supply failure when the system is configured appropriately.

For critical storage infrastructure, power redundancy can contribute to improved availability and easier hardware maintenance.

Cooling System

The TS-EC1279U-RP uses three 6 cm smart cooling fans to manage airflow through the rackmount chassis.

Proper cooling is important in a 12-drive storage system because multiple hard drives and internal components generate heat during operation.

The system is specified for an operating temperature range of 0°C to 40°C and relative humidity of 5% to 95% non-condensing.

These specifications should be considered when planning installation in a server room or data center.

Business Data Storage

The QNAP TS-EC1279U-RP 12-Bay Rackmount NAS can be used for a wide range of business storage applications, including centralized file storage, backup, shared folders, virtualization storage, and network-based data management.

Its 12 drive bays provide significant storage flexibility, while RAID support allows administrators to design storage configurations according to their business requirements.

The combination of Xeon processing and ECC memory also makes the platform suitable for professional environments where storage services need to support multiple concurrent operations.

Backup and Data Management

A centralized NAS can play an important role in a business backup strategy. The TS-EC1279U-RP provides a platform for storing backup data and managing shared business files from a central location.

QNAP’s software platform includes multiple tools and services for data management, file sharing, backup, synchronization, and remote access.

Organizations should still use an appropriate backup strategy that includes independent copies of important data, because RAID is designed primarily for storage availability and is not a substitute for backup.

QNAP TS-EC1279U-RP Specifications

The specifications above are based primarily on QNAP’s official hardware specifications and product documentation.

Why Choose the QNAP TS-EC1279U-RP?

The QNAP TS-EC1279U-RP is a suitable option for organizations that need a professional 12-bay NAS storage server with rackmount deployment, ECC memory, Xeon processing, RAID support, and network expansion capabilities.

Its 12 SATA drive bays provide substantial storage flexibility, while hot-swappable trays simplify maintenance. The four Gigabit Ethernet ports provide built-in network connectivity, and the PCIe expansion slots allow compatible 10GbE or storage expansion options to be added as infrastructure requirements evolve.

The system’s unified NAS and IP-SAN capabilities also make it suitable for businesses that require both file-based and block-level network storage.

QNAP TS-EC1279U-RP for Data Centers

For data center environments, rack space, storage density, network performance, and system reliability are important considerations.

The QNAP TS-EC1279U-RP 12-Bay NAS combines 12 drive bays with a 2U rackmount chassis, allowing organizations to deploy a large amount of storage within a structured rack environment.

Optional 10GbE expansion can also provide higher network bandwidth for demanding storage workloads. QNAP’s published testing demonstrates that the platform can achieve substantially higher transfer performance when configured with multiple 10GbE connections, although real-world results depend on the storage configuration, network equipment, and workload.

QNAP TS-EC1279U-RP for Business Storage

Businesses managing large quantities of documents, backups, application data, and shared files can use the TS-EC1279U-RP as a centralized storage platform.

The 12-bay architecture provides room for storage expansion, while RAID options can be selected to provide an appropriate balance between capacity and redundancy.

The combination of ECC RAM, Xeon processing, multiple network interfaces, iSCSI, and virtualization compatibility makes the QNAP TS-EC1279U-RP Rackmount NAS a flexible platform for professional IT infrastructure.

Conclusion

The QNAP TS-EC1279U-RP is a professional 12-bay 2U rackmount NAS designed for businesses that need centralized, scalable, and flexible network storage. With a Quad-Core Intel Xeon E3-1225 v2 3.2GHz processor, 4GB DDR3 ECC memory expandable up to 32GB, 12 hot-swappable SATA drive bays, and four Gigabit Ethernet ports, it provides a strong hardware foundation for business storage applications.

Its support for RAID configurations, iSCSI, virtualization environments, cross-platform file sharing, optional 10GbE networking, and PCIe expansion makes the QNAP TS-EC1279U-RP 12-Bay NAS suitable for a variety of professional storage deployments.

For organizations searching for a QNAP 12-Bay Rackmount NAS, the TS-EC1279U-RP offers a combination of storage density, ECC memory, processing performance, network flexibility, and rackmount design for centralized business data management.

For complete technical specifications and hardware details, visit the official QNAP TS-EC1279U-RP product documentation and datasheet.
