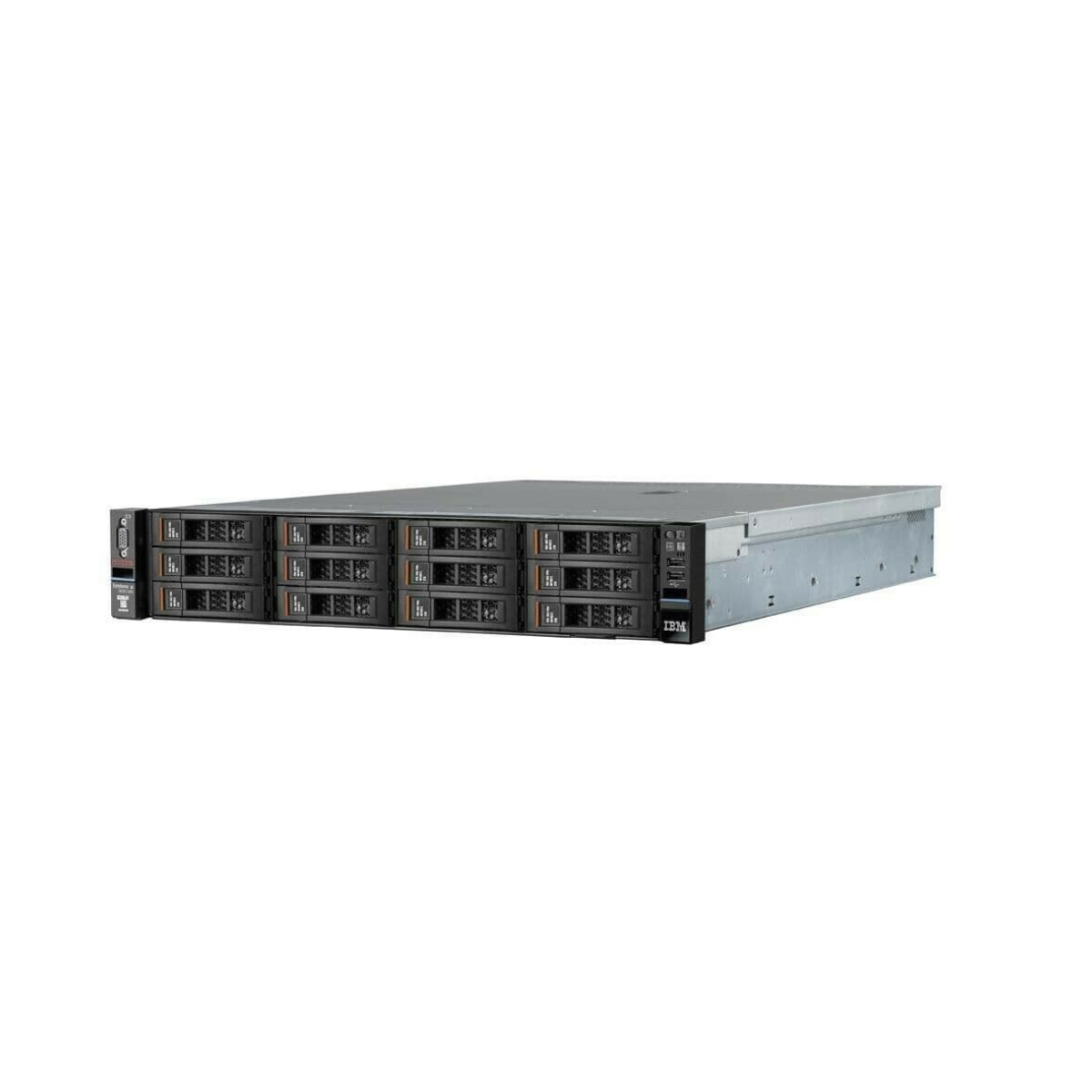

Lenovo System x3650 M5 12×3.5″ – High-Performance 2U Server for Business-Critical Environments

The Lenovo System x3650 M5 12×3.5″ is engineered for business-critical environments, delivering exceptional performance and flexibility in a compact 2U form factor. Powered by the Intel Xeon E5-2600 v3 processor family, this server supports up to two processors, providing superior multitasking and processing power. Its industry-leading storage capacity with 12×3.5-inch drive bays and pay-as-you-grow scalability make it ideal for small-to-medium businesses and large enterprises alike. Additionally, the server integrates advanced management tools and energy-efficient components to ensure cost-effective operation and simplified deployment. The balanced combination of performance, expandability, and reliability makes it a versatile choice for diverse workloads including virtualization, databases, and cloud applications.

Lenovo System x3650 M5 12×3.5″ Processor and Performance

The Lenovo System x3650 M5 12×3.5″ supports two processor sockets compatible with Intel Xeon E5-2600 v3 processors featuring up to 18 cores and 45 MB of L3 cache. Technologies like Intel Turbo Boost and Hyper-Threading enhance performance for peak workloads and multithreaded applications, while Intel AVX 2.0 accelerates enterprise-class tasks such as databases, analytics, and virtualization. This robust processing power ensures smooth handling of intensive workloads, enabling faster data processing and better application responsiveness.

Memory Capabilities of Lenovo System x3650 M5 12×3.5″

With 24 DDR4 DIMM slots (12 per processor), the x3650 M5 12×3.5″ supports up to 1.5 TB of memory using 64 GB LRDIMMs or 768 GB with 32 GB RDIMMs. It achieves speeds of up to 2133 MHz with two DIMMs per channel, surpassing Intel’s specifications by 12%, ensuring fast and reliable memory performance for demanding workloads. The large memory capacity supports memory-intensive applications, enabling improved virtualization density and higher throughput for enterprise databases and analytics.

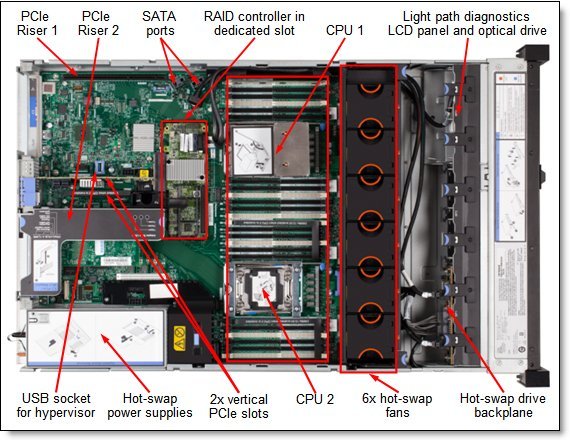

Cooling, Redundancy, and Reliability in Lenovo System x3650 M5 12×3.5″

Equipped with six hot-swap redundant fans in a dual-zone cooling design, the Lenovo System x3650 M5 12×3.5″ ensures reliable operation even in harsh environments up to 40°C. N+1 redundancy allows the system to remain operational if a fan fails, enhancing uptime. Redundant power supplies further contribute to continuous business operations. This design minimizes downtime risks, providing peace of mind for mission-critical applications requiring high availability.

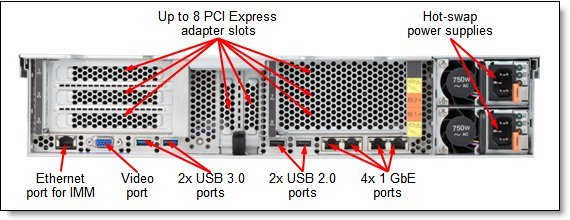

Connectivity and Expansion with Lenovo System x3650 M5 12×3.5″

This server features four integrated Gigabit Ethernet ports and optional 10 GbE ports via ML2 adapters. It offers up to eight PCIe 3.0 slots and a dedicated slot for a storage controller, reducing latency with Intel Integrated I/O Technology, making it adaptable for various enterprise applications. The flexibility in expansion supports diverse hardware configurations, enabling organizations to customize the system according to evolving IT needs.

Availability and Serviceability of Lenovo System x3650 M5 12×3.5″

Hot-swap drives, redundant power supplies, and fans increase uptime, while tool-less cover removal simplifies upgrades. Next Gen light path diagnostics and Proactive Platform Alerts help quickly identify and resolve issues, minimizing downtime. Serviceability features allow IT staff to perform maintenance or upgrades rapidly without interrupting operations, supporting continuous business performance.

Energy Efficiency in Lenovo System x3650 M5 12×3.5″

The x3650 M5 12×3.5″ incorporates 80 PLUS Titanium power supplies with 96% efficiency at 50% load, low-voltage DDR4 DIMMs, and optimized airflow design. SSDs and Intel Intelligent Power Capability further reduce power consumption, lowering operating costs and environmental impact. This energy efficiency aligns with corporate sustainability goals while delivering cost savings on power and cooling.

Manageability and Security in Lenovo System x3650 M5 12×3.5″

Advanced management features simplify local and remote server administration. The server includes Integrated Management Module II (IMM2.1), Unified Extensible Firmware Interface (UEFI), and Lenovo XClarity Administrator tools. Security is enhanced with an integrated Trusted Platform Module (TPM), System x Trusted Platform Assurance, optional self-encrypting drives, AES NI support, Intel Execute Disable Bit, and Intel Trusted Execution Technology for robust protection against attacks. These security measures safeguard sensitive data and firmware, ensuring regulatory compliance and protecting business assets from evolving cyber threats.

For more details, you can view the data sheet on our website using the following link: Technical Guide
