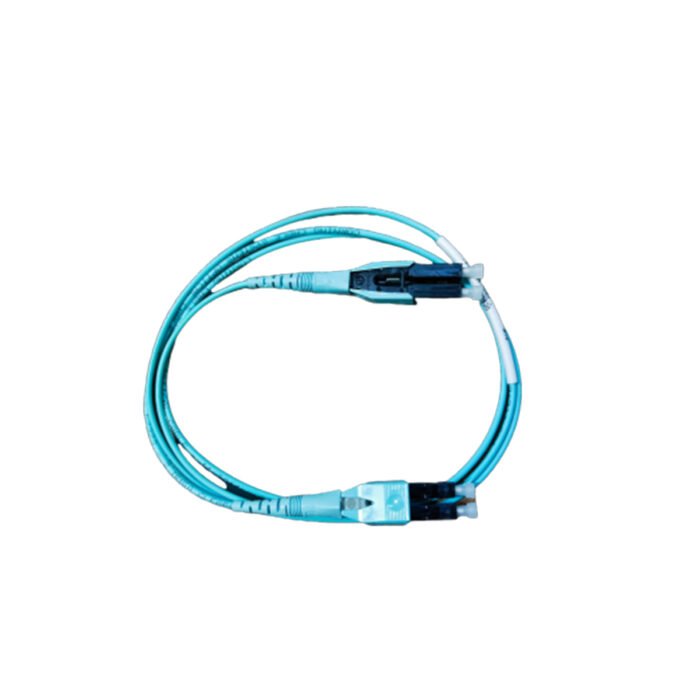

Duplex Fiber Optic Patch Cable 1M – LC to LC Multi-Mode Male to Male

The Duplex Fiber Optic Patch Cable 1M – LC to LC Multi-Mode, Male to Male is a high-quality optical connection cable designed for maximum performance and stability in short-distance networking applications. Built with precision-engineered LC connectors and premium multi-mode fiber, this cable ensures superior data transmission with minimal loss, making it ideal for linking nearby network devices in racks, cabinets, or desktop setups.

The Duplex Fiber Optic Patch Cable 1M is optimized for modern high-speed networks, supporting up to 10 Gigabit Ethernet and higher bandwidth applications. Its compact 1-meter length is perfect for installations where space efficiency, low signal loss, and reduced cable clutter are essential.

Exceptional Design and Build Quality

The Duplex Fiber Optic Patch Cable 1M features two multi-mode fibers aligned in a parallel configuration to support full-duplex communication—enabling simultaneous data transmission and reception. Its LC to LC connectors provide secure and precise connectivity, reducing insertion and return losses to ensure reliable network performance.

The durable outer jacket, available in PVC or LSZH (Low Smoke Zero Halogen) materials, protects the internal fibers from damage while maintaining flexibility for easy installation in confined network environments. The LSZH version also enhances safety by minimizing smoke and toxic emissions in case of fire—perfect for use in data centers, server rooms, and office networks.

Key Specifications

• Cable Type: Duplex Fiber Optic Patch Cable

• Length: 1 Meter

• Connector Type: LC to LC

• Connector Gender: Male to Male

• Fiber Type: Multi-Mode (OM3 / OM4)

• Supported Wavelengths: 850 nm / 1300 nm

• Insertion Loss: ≤ 0.3 dB

• Return Loss: ≥ 45 dB

• Jacket Material: PVC or LSZH

• Operating Temperature: –20°C to +70°C

This Duplex Fiber Optic Patch Cable 1M provides excellent performance consistency, ensuring stable optical power and minimal attenuation across short distances. It’s designed for network professionals who require accuracy and dependability for mission-critical applications.

Applications

The Duplex Fiber Optic Patch Cable 1M is ideal for short-range connectivity where reliability and low loss are vital. Common use cases include:

• Data Centers: Connecting servers, switches, and routers within the same rack or adjacent racks.

• Enterprise Networks: Linking patch panels, transceivers, or access switches.

• Telecom Systems: Facilitating high-speed interconnections between fiber modules.

• Laboratories and Testing Environments: Ensuring consistent optical performance for network diagnostics.

• Industrial Applications: Maintaining reliable data transmission between control devices.

Thanks to its compact length, the Duplex Fiber Optic Patch Cable 1M offers excellent manageability and eliminates unnecessary slack, helping maintain neat, efficient cabling layouts.

Benefits of Duplex Fiber Optic Patch Cable 1M

1. Ultra-Low Signal Loss: Perfect for short-distance, high-precision connections.

2. High-Speed Support: Compatible with 1G, 10G, 40G, and 100G network systems.

3. Compact LC Connectors: Space-saving design suitable for high-density ports.

4. Full-Duplex Capability: Enables two-way data transmission simultaneously.

5. Strong Durability: Resistant to bending, vibration, and temperature changes.

6. Excellent Compatibility: Works with most major network brands—Cisco, Dell, HP, Juniper, and more.

7. Clean Cable Management: Ideal for organized and tidy rack setups.

Construction and Materials

Each Duplex Fiber Optic Patch Cable 1M is manufactured using precision-polished ceramic ferrules to ensure exact fiber alignment and reduce reflection. The internal fibers are protected by tight-buffered construction, and the outer jacket provides mechanical protection against cuts or stress during installation.

The cable’s compact size makes it an excellent choice for connecting network components within a single cabinet, where maintaining short and efficient connections is essential for optimal airflow and cable organization.

Performance and Reliability

Engineered for peak performance, the Duplex Fiber Optic Patch Cable 1M delivers exceptional optical clarity and signal stability. Multi-mode fiber (OM3/OM4) provides high bandwidth capabilities, ensuring smooth data transmission even under heavy network loads.

Its 1-meter length minimizes latency and signal attenuation, resulting in consistently high data integrity—critical for high-speed operations like virtualization, cloud computing, and video conferencing.

Installation and Handling Tips

To ensure your Duplex Fiber Optic Patch Cable 1M performs at its best:

• Always clean LC connectors before use to prevent dust-induced signal loss.

• Avoid sharp bends to maintain optimal optical transmission.

• Use cable organizers or Velcro straps to secure cables neatly.

• Clearly label both ends of the cable for easy maintenance and troubleshooting.

These best practices ensure a long-lasting, stable fiber connection and preserve the cable’s performance quality.

Why Choose a 1M Fiber Cable?

The 1-meter length is ideal for environments where devices are positioned close together—such as connecting two switches or linking a transceiver to a patch panel. Shorter cables reduce clutter, enhance airflow, and eliminate unnecessary optical power loss, ensuring both aesthetic and functional efficiency.

When compared to longer cables, the Duplex Fiber Optic Patch Cable 1M offers the lowest insertion loss and highest signal quality, making it a preferred option for professionals who prioritize precision and performance.

Duplex vs. Simplex Fiber

Unlike simplex cables that transmit in one direction, the Duplex Fiber Optic Patch Cable 1M supports bidirectional communication using two optical fibers—one for transmit (Tx) and the other for receive (Rx). This allows simultaneous data exchange, doubling efficiency and ensuring uninterrupted communication between connected devices.

Safety and Environmental Standards

The Duplex Fiber Optic Patch Cable 1M is designed to meet or exceed international standards including IEC 61754-20, TIA/EIA-568, and RoHS. The LSZH jacket option is particularly recommended for use in enclosed or public areas due to its fire-resistant and non-toxic properties.

PVC options, on the other hand, offer flexibility and cost-effectiveness for general-purpose indoor applications.

Compatibility

The Duplex Fiber Optic Patch Cable 1M is compatible with SFP, SFP+, and GBIC transceivers from leading brands such as Cisco, HP, Juniper, Dell, Brocade, and Arista. This ensures seamless integration across a wide range of networking equipment.

Each cable undergoes rigorous testing to confirm low insertion loss, high return loss, and overall optical stability before reaching the customer.

Conclusion

The Duplex Fiber Optic Patch Cable 1M – LC to LC Multi-Mode, Male to Male combines precision, speed, and reliability in a compact design. Perfect for short-distance links in data centers, enterprise networks, and telecom setups, this cable delivers exceptional performance with minimal signal degradation.

Its multi-mode fiber core, full-duplex functionality, and robust LC connectors make it an ideal solution for today’s demanding high-bandwidth environments. Whether you’re connecting two switches or patching between panels, the Duplex Fiber Optic Patch Cable 1M ensures your network operates at maximum efficiency, safety, and stability.
