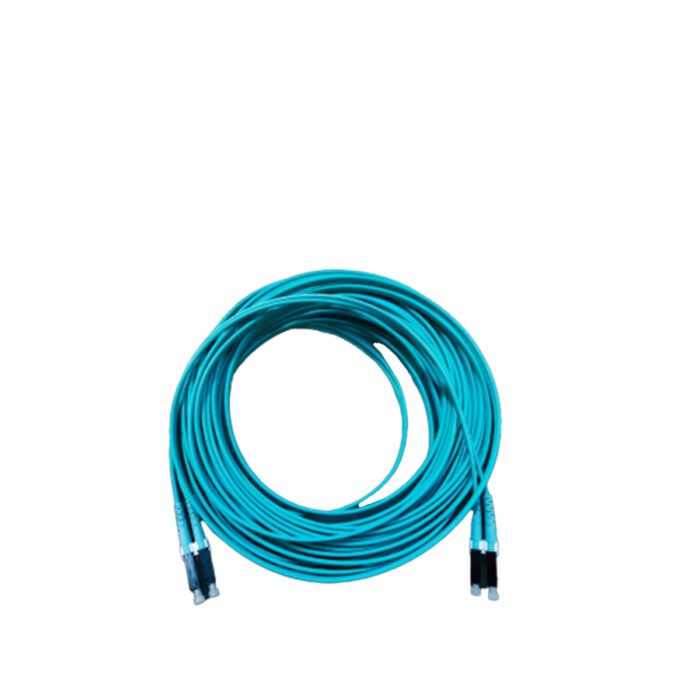

Duplex Fiber Optic Patch Cable 10M – LC to LC Multi-Mode, Male to Male

Introduction

In modern network infrastructures, achieving reliable, high-speed optical connectivity is crucial. The Duplex Fiber Optic Patch Cable 10M – featuring LC to LC connectors and multi-mode fiber technology – is a robust solution for rack-to-rack, panel-to-panel, or switch-to-storage links. This description provides an in-depth look at its features, specifications, advantages, applications, installation and selection criteria, all optimized for Rank Math SEO with repeated natural use of the focus key-phrase “Duplex Fiber Optic Patch Cable 10M”.

What is the Duplex Fiber Optic Patch Cable 10M?

The Duplex Fiber Optic Patch Cable 10M is a patch cord designed to carry optical signals over two fibers (duplex), one for transmit and one for receive, with a length of ten metres. It is terminated at both ends with LC connectors (commonly LC male to LC male duplex) and uses multi-mode fiber (typically 50/125 µm core/cladding), often in the OM3 or OM4 category. For example, a product specification lists LC/UPC-LC/UPC OM4 duplex 50/125 µm fiber patch cables with insertion loss ≤ 0.3 dB.

Because of its 10 m length, the Duplex Fiber Optic Patch Cable 10M is ideal for interconnections in data centres where flexible linking between racks, switch arrays and patch panels is needed without excessive slack.

Why multi-mode and why duplex configuration?

Multi-mode fiber supports multiple propagation modes and is suited for relatively short-to-moderate distances inside buildings and data centers. According to industry data, an OM4 50/125 µm multi-mode fiber supports duplex LC connections for inter-rack distances up to ~150 m. Wikipedia+1

Duplex means two dedicated fiber strands—one sending data, the other receiving—which allows full-duplex communication and is standard in data center patching. The use of LC connectors (small form factor) enables dense port configurations, making the Duplex Fiber Optic Patch Cable 10M efficient for high-density installations.

Technical Specifications of Duplex Fiber Optic Patch Cable 10M

Below are typical specs you should expect when choosing a Duplex Fiber Optic Patch Cable 10M:

• Length: approximately 10 metres — allowing comfortable inter-rack or panel-to-panel routing.

• Fiber type: Multi-mode, typically OM3 or OM4 50/125 µm (core/cladding) so as to support high-speed links and backwards compatibility.

• Connectors: LC to LC, duplex configuration (LC male to LC male, or LC/UPC to LC/UPC) with ceramic ferrules for low loss.

• Jacket material: Options may include PVC or LSZH (Low Smoke Zero Halogen) depending on environment requirements. For example one datasheet lists LSZH jacket for OM4 LC/UPC-LC/UPC patch cables.

• Insertion loss: Typically ≤ 0.3 dB for each connector, ensuring minimal signal attenuation.

• Return loss: High return loss values (e.g., ≥ 45 dB) are common for quality multi-mode duplex patch cables.

• Operating temperature range and bend radius: e.g., −20 °C to +60 °C, minimum bend radius ∼30 mm for multi-mode LC patch cords.

• Standards compliance: Complying with ISO/IEC, TIA/EIA and RoHS ensures interoperability and quality.

With these features, the Duplex Fiber Optic Patch Cable 10M delivers reliable, high-performance connectivity suitable for contemporary high-speed networks.

Key Features and Benefits of Duplex Fiber Optic Patch Cable 10M

High-Speed Performance: Because the Duplex Fiber Optic Patch Cable 10M uses multi-mode 50/125 µm fiber (OM3/OM4), it supports 10 Gbps, 40 Gbps and even 100 Gbps links for moderate distances inside data centres.
Compact Form Factor: The LC connector enables higher port density compared to older SC style connectors. This means more links per rack unit and better space optimisation.
Plug-and-play Simplicity: The Duplex Fiber Optic Patch Cable 10M comes pre-terminated with LC connectors, so there’s no field termination required. Installers simply plug in and go.
Durability and Quality: With low insertion loss and high return loss, and compliance with industry standards, the Duplex Fiber Optic Patch Cable 10M provides consistent performance and longevity.
Flexible Length: With a 10 metre length, you get the flexibility to route between racks or patch panels without excessive slack, while still covering useful distances in typical data centre layouts.
Future-Proofing: Using OM4 grade multi-mode fiber in the Duplex Fiber Optic Patch Cable 10M ensures you’re ready for next-generation optical transceivers and higher bandwidth demands.

Typical Applications for Duplex Fiber Optic Patch Cable 10M

The Duplex Fiber Optic Patch Cable 10M is used in:

• Data centre rack interconnects: connecting server racks, switch stacks, patch panels and optical distribution frames.

• Enterprise backbone links: inter-floor or inter-room links in enterprise network infrastructures where fibre is required.

• Storage Area Networks (SANs): high-speed optical links between storage servers and switches, often needing low latency and high throughput.

• Telecom or carrier equipment rooms: where high-density LC termination and multi-mode duplex fibre cabling is standard.

• Campus or LAN environments: linking IDF (Intermediate Distribution Frames) to MDF (Main Distribution Frames) over moderate distances.

Because the length is 10 m, the Duplex Fiber Optic Patch Cable 10M is well suited for intra-room or intra-rack installations rather than very long runs.

How to Select the Right Duplex Fiber Optic Patch Cable 10M

When selecting the correct Duplex Fiber Optic Patch Cable 10M, consider the following key criteria:

• Fiber Type: Ensure you select OM3 or OM4 if you require high bandwidth or future-proofing; OM4 is more capable over longer distances.

• Connector Type: Confirm that both ends use LC connectors (LC to LC) because the Duplex Fiber Optic Patch Cable 10M is designed for that configuration.

• Build Quality: Check specs such as insertion loss (should be ≤ 0.3 dB) and return loss (should be high, e.g., ≥ 45 dB) to ensure reliable performance in your network.

• Jacket Material: For standard indoor use, PVC may suffice; for environments requiring low smoke and halogen-free materials, choose LSZH jacket.

• Length and Routing: Ensure the 10-metre length fits your routing path without excessive slack; manage cable runs to avoid tangles and maintain airflow.

By ensuring these criteria are addressed, you can select the right Duplex Fiber Optic Patch Cable 10M for your network deployment.

Installation and Maintenance Tips for Duplex Fiber Optic Patch Cable 10M

Before and during installation of the Duplex Fiber Optic Patch Cable 10M, apply these best practices:

• Clean connectors before insertion: Dust or debris on LC ferrules can cause signal loss or failure.

• Respect bend radius: Avoid tight loops and ensure you maintain the manufacturer’s specified minimum bend radius (often ~30 mm) to prevent fibre damage.

• Label both ends clearly: Since this is a duplex link, ensure each fiber is identified for transmit/receive orientation and easily traceable.

• Manage slack and routing: Route the Duplex Fiber Optic Patch Cable 10M using cable management trays or fingers, avoiding excessive loops or crowding.

• Periodic testing: Use a fibre optic power meter or insertion loss tester to verify links after installation and during maintenance to ensure the Duplex Fiber Optic Patch Cable 10M continues to perform within specification.

Advantages Compared to Single-Mode and Copper Cabling

Compared to copper Ethernet cables, fibre patch cords like the Duplex Fiber Optic Patch Cable 10M offer significant advantages: higher bandwidth, lower signal attenuation, immunity to electromagnetic interference (EMI), and thinner lighter cable runs.
Compared to single-mode fibre, multi-mode offers cost-effective connectivity for shorter distances typically found in data centers. The Duplex Fiber Optic Patch Cable 10M, with its LC duplex multi-mode build, is often more economical for intra-rack and intra-room links.

Potential Limitations to Consider

While extremely effective within its design envelope, the Duplex Fiber Optic Patch Cable 10M has some limitations:

• For very long runs (>100 m) or external links, single-mode fibre may be more appropriate.

• Multi-mode fibre’s reach is shorter compared to single-mode—this must be considered when planning the link.

• Fibre optics require careful handling—bends, crimps or connector damage can degrade performance rapidly.

• Ensure that all connected equipment supports LC connectors and multi-mode fibre; mismatches can lead to performance issues.

Environmental and Compliance Considerations

Good-quality patch cables such as the Duplex Fiber Optic Patch Cable 10M will often be RoHS-compliant and available with LSZH jackets for fire-safe installations. For example, one manufacturer’s OM4 LC/UPC-LC/UPC duplex 50/125 µm cable lists LSZH jacket and low insertion loss ≤ 0.3 dB.
Selecting the correct jacket material, such as LSZH in plenum or critical environments, ensures the Duplex Fiber Optic Patch Cable 10M meets safety and building-code requirements.

Conclusion

In summary, the Duplex Fiber Optic Patch Cable 10M LC to LC Multi-Mode Male to Male End is a premium-grade cabling solution for high-density, high-speed network installations. With its 10-metre length, duplex multi-mode 50/125 µm fibre, LC-LC connectors, and robust build specification, this cable is ideal for data centres, enterprise networks and SAN environments.
By choosing a well-specified Duplex Fiber Optic Patch Cable 10M, network engineers gain low latency, high throughput, excellent reliability and future-proof connectivity for critical infrastructure. If you need help choosing specific OM-grade, jacket type or cable colour variants, I’m here to assist further.
